In wafer bonding machine or semiconductor testing equipment, space is usually limited and standard spotlights are too large to fit. Therefore, a high-brightness mini spot light is needed. This typically operates at 24V, reducing the space and number of controllers required.

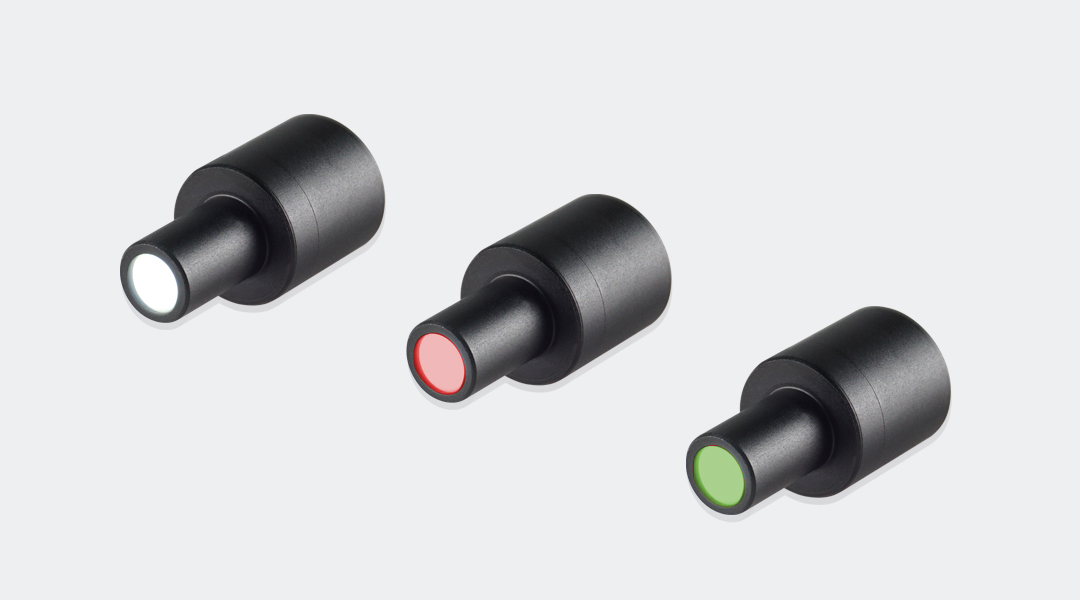

For this application, LOTS Automation has launched a mini spot light. Its advantages include a total length of 27mm, a diameter of 14mm, a voltage of 24V, and an illuminance of 140,000 lux (at zero distance), making it ideal for this application.

Product Features
◆High-brightness LED design ensures uniform brightness and a compact size.
◆Light output 8mm, diameter 14mm, total length 27mm
◆Voltage: 24V, power 1W, illuminance 140,000 lux
◆Suitable for narrow spaces

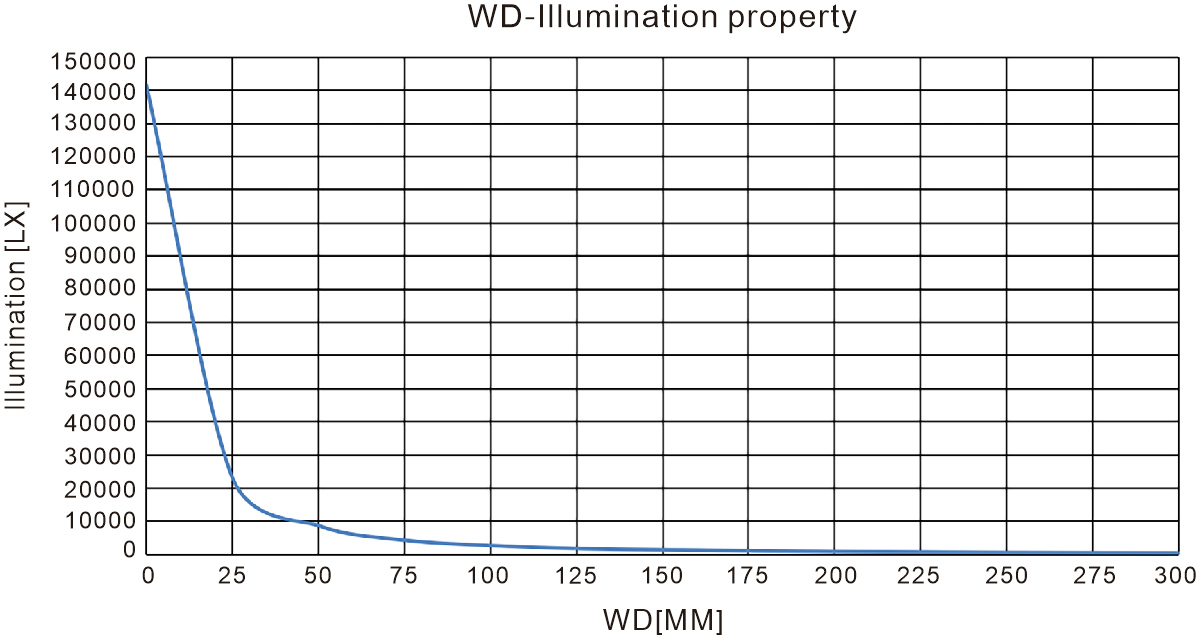

Illuminance Characteristics
Model: LTS-3SL08-24-W

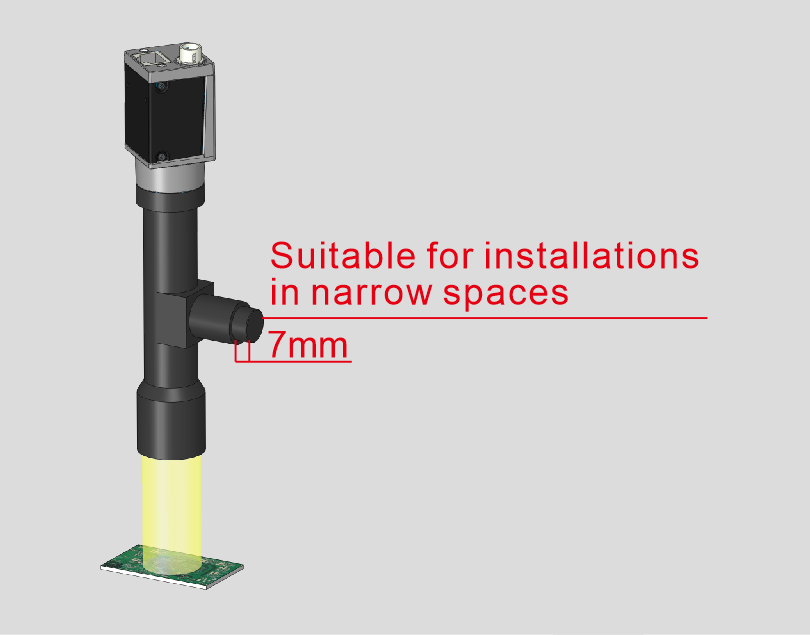

Applications

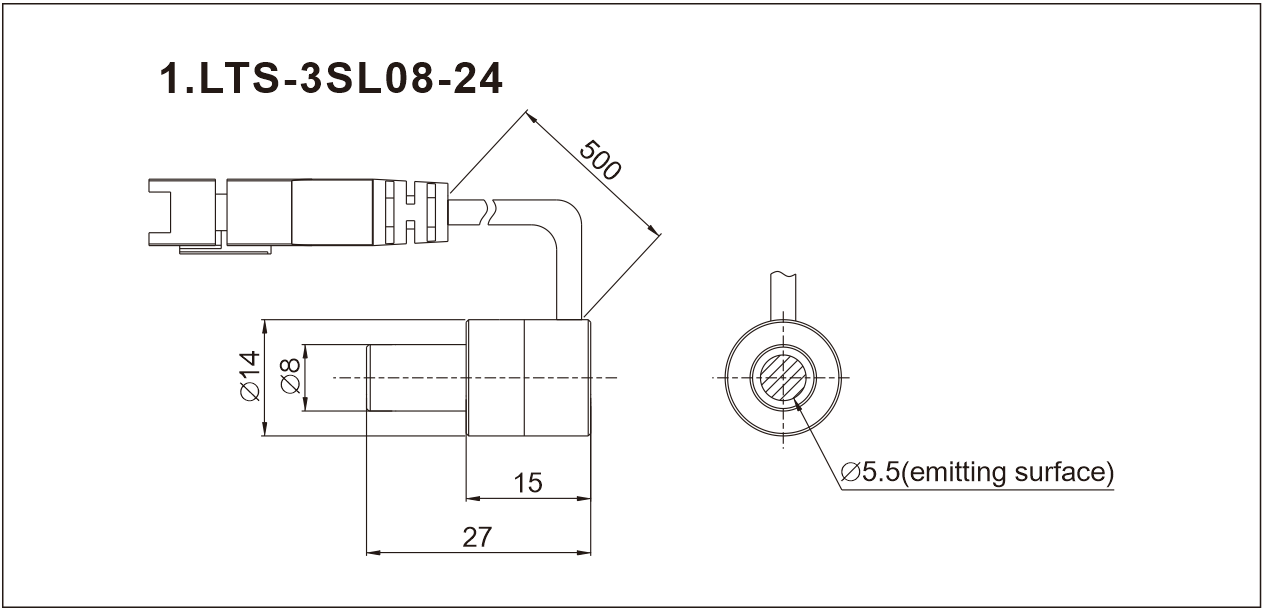

Boundary dimension (mm)
