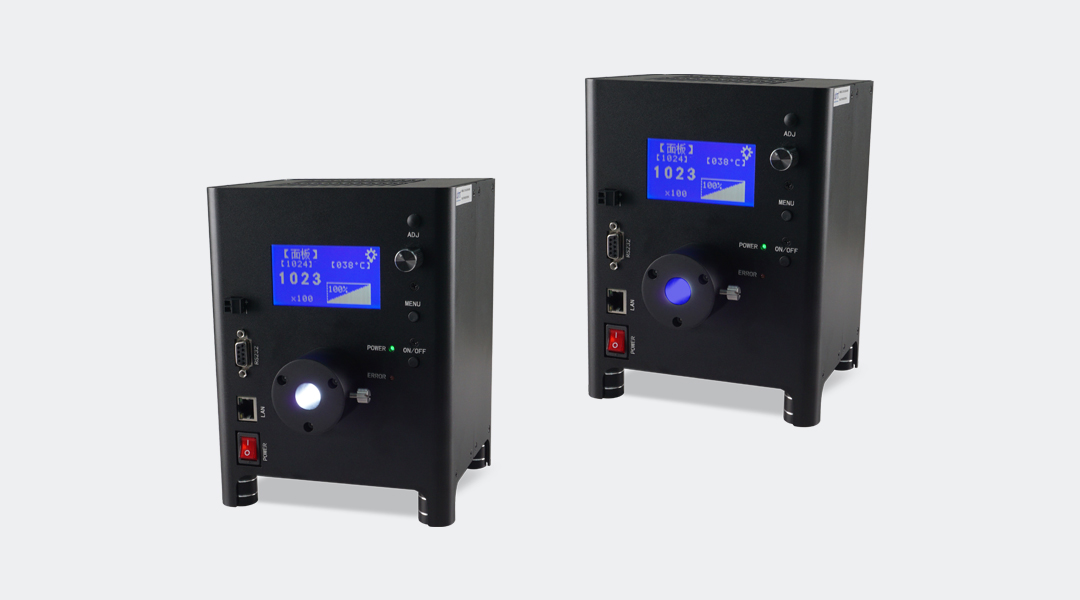

In semiconductor manufacturing processes, fully automated wafer defect inspection technology imposes stringent requirements on optical imaging performance. The inspection encompasses both bright-field and dark-field modalities, with the majority of illumination sources employing high-brightness fiber optics to detect surface defects on silicon wafers (such as edge chipping, corner missing, and surface contamination). LOTS AUTOMATION newly upgraded second-generation high-brightness fiber-optic light source demonstrates a 60% luminance enhancement in the 2SLG250 model compared to the 2SLG150-W. Characterized by superior luminous efficacy and reduced heat generation, this advanced light source represents the optimal solution for semiconductor inspection applications.

Product Features
◆ High brightness and high efficiency are achieved through a multi-group coupled lens design.
◆ The appearance is simple and smooth, and the volume is more compact.
◆ Five colors of R/G/B/W/CW (high color rendering) are standard.
◆ The illuminance at 20mm can reach 15 million LX.
◆ It is suitable for semiconductor microscopic module applications.

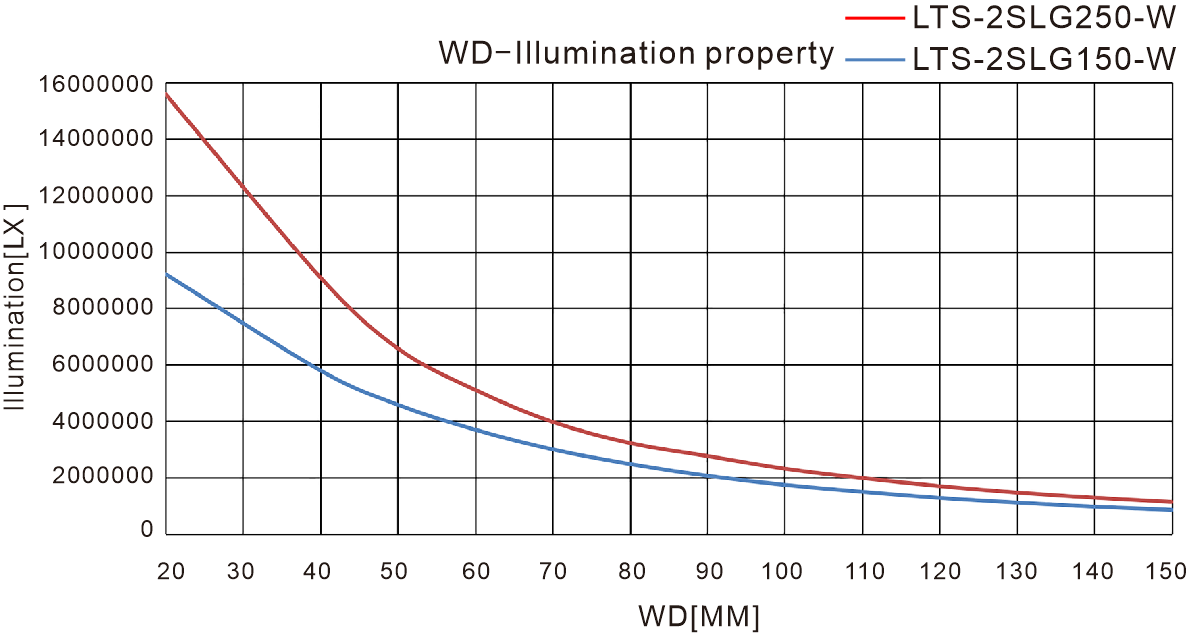

Illuminance characteristic diagram
Model: LTS-2SLG250-W/2SLG150-W

Note: A straight-type optical fiber conduit with a total length of 1100mm, featuring a 100% dimming function and an 8mm optical fiber beam. The measured values from the optical fiber outlet to the respective irradiation distances (not guaranteed values).

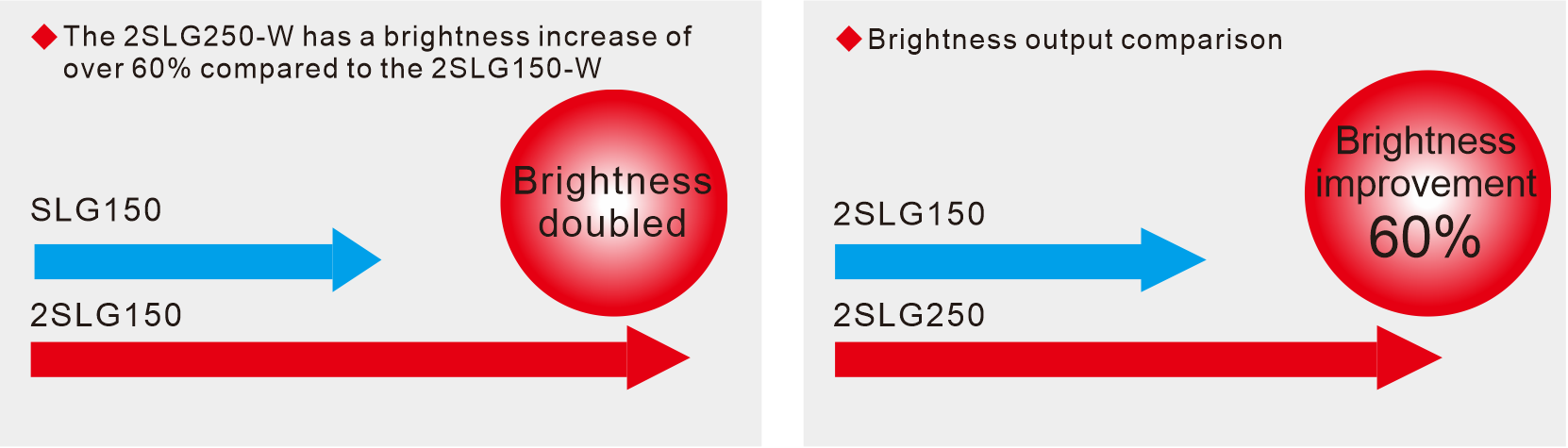

Brightness comparison chart
The 2SLG250-W has a brightness increase of over 60% compared to the 2SLG150-W

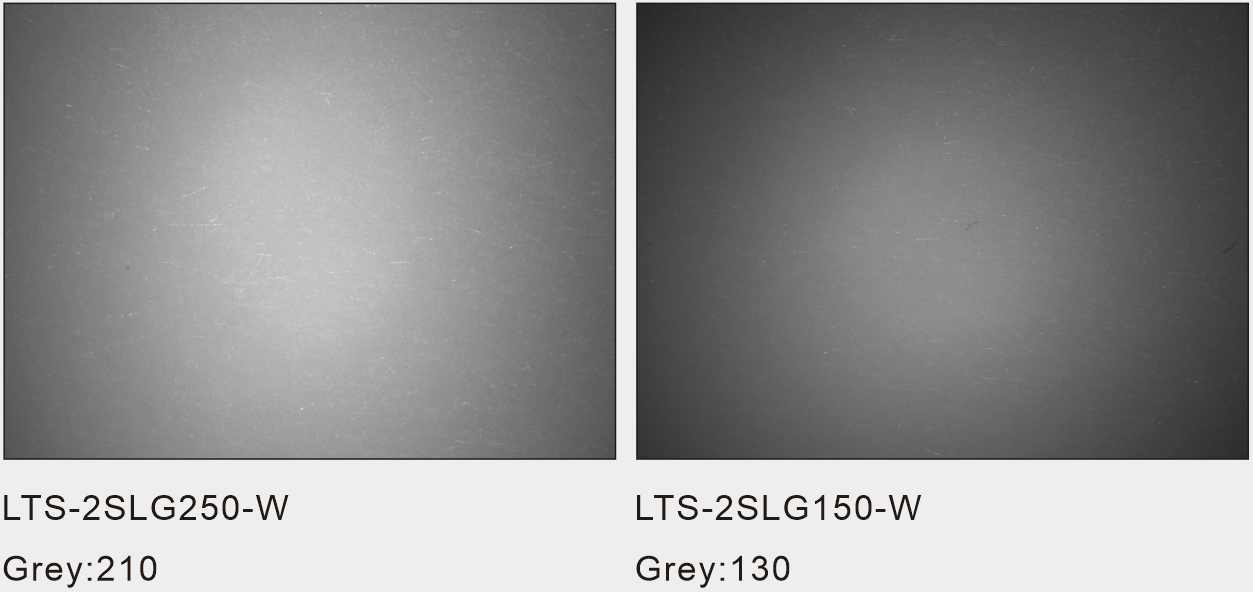

Image grayscale contrast chart
Camera:ACA2440-20gm
Lens:LTS-TC05110
Camera exposure:130us

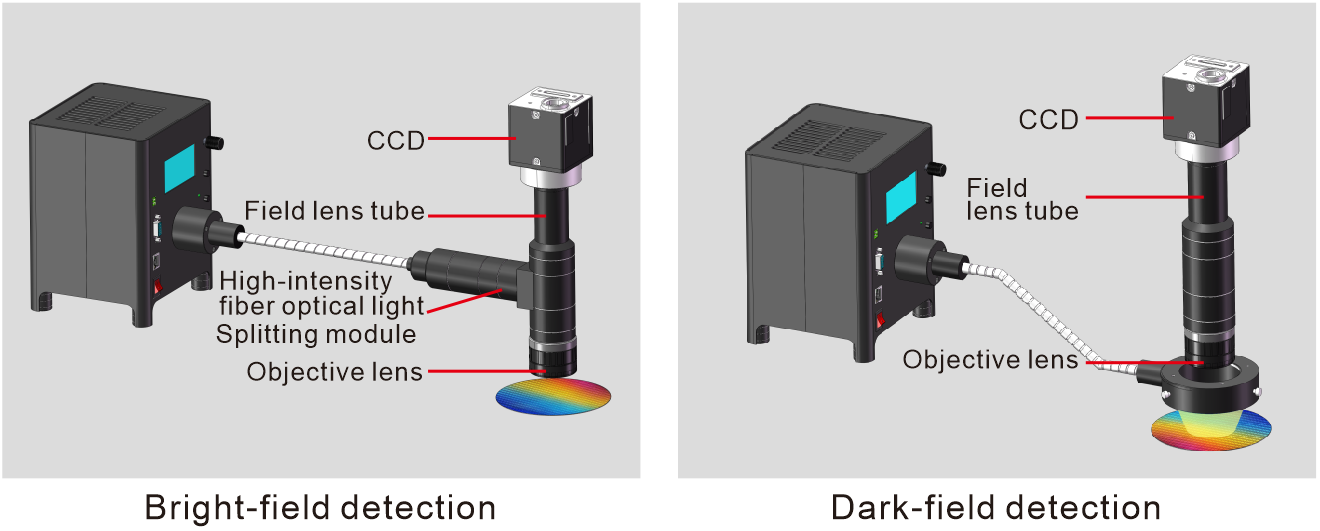

Micro-module wafer application diagram

Can be equipped with 4 different light-collecting lenses

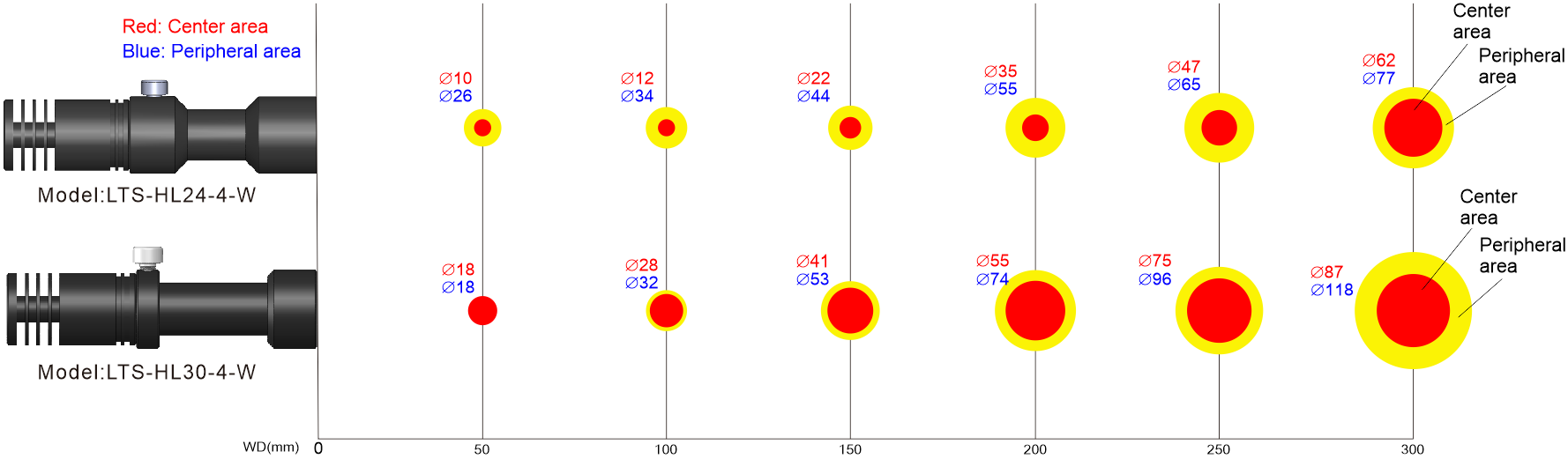

Illuminance distribution chart (LTS-HL)

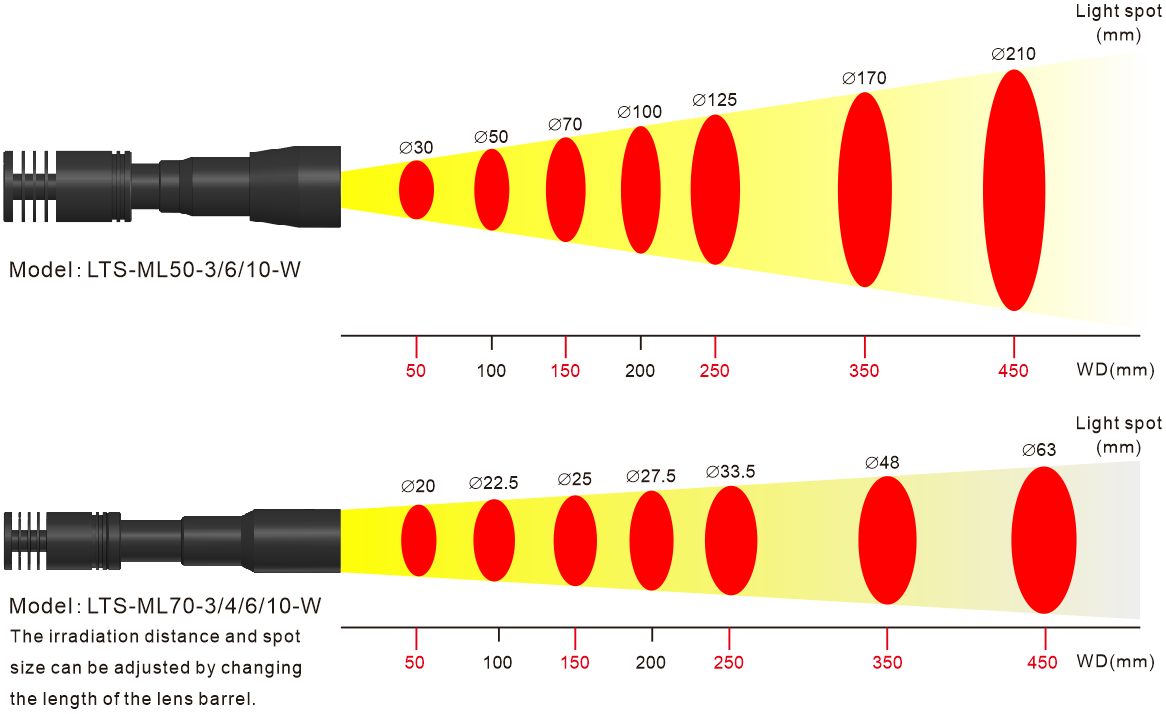

Illuminance distribution chart (LTS-ML)

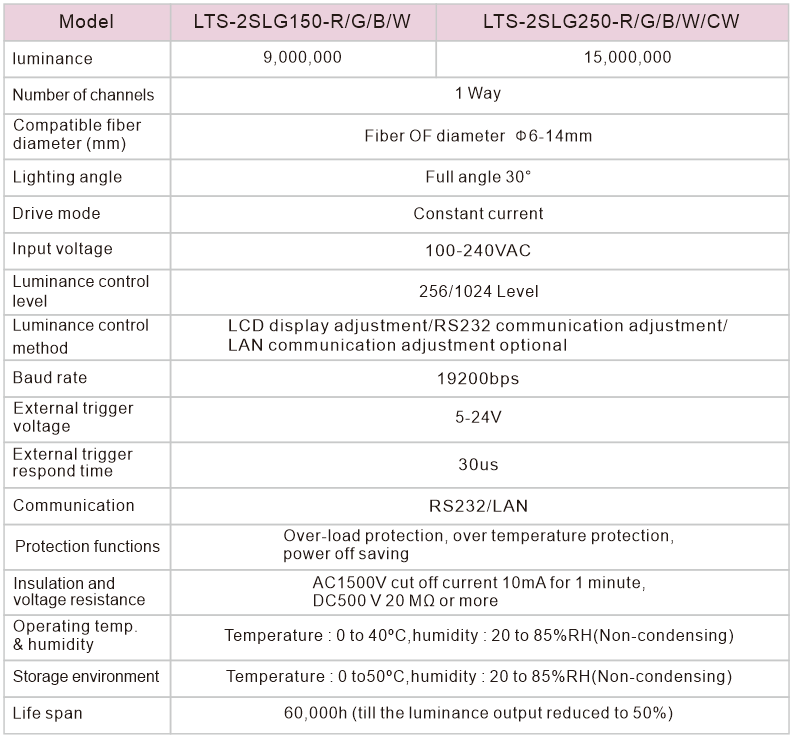

Light parameters
