The Coherence II, Series II was released April 1997. The Coherence II Series II upgrade involves the redesign of the attenuator amp circuitry. The actual circuit topology is similar; however, all of the circuit components were improved, taking advantage of recently available modern surface mount technology. The output amplifier is a newly developed, dual high-current transimpedance amplifier which handles both phases of the output circuit on one isothermic, copper lead frame power device. This output amplifier and all associated surface mount circuitry allow significant reductions in circuit loop area and path length yielding wider bandwidth, faster setting time, reduced dielectric absorption and greater thermal tracking stability. The overall sonic result is greater clarity during complex music passages and increased resolution of intertransient silence. I have not read of an official way to discern series 1 from series 2 by eye, but I do know that early models used green/brown circuit boards for the line stage modules, whereas the newer models use the more flashy bright red circuit boards. Note that the power supply section as well as the front panel section use green/brown circuitboards for both versions.

From a basic peer-to-peer network to a server based network, proper planning and installation are key to a well secured and efficiently operating system.

Coherence 2release Date

If you disconnect the Coherence Preamplifier from AC power, you must hold the “mode” button on the power supply for 10 seconds, or until a “click” is heard. If you do not perform this disconnect procedure, one of the two internal batteries will continue to discharge, causing a potential battery failure.

Vision Control proudly supported Stak Design, a permier exhibit and rentai fixture design firm with VCA Audio Visual solutions for their exhibitors including Video Wall Solutions, Interactive Touch Screens and High Density Wi Fi for Mobile Device…

Press and hold the mode button on the frontpanel of the powersupply for 4 seconds and release. Nothing may happen for a couple of seconds but then a click is heard and the amp comes back online. You will have to re-program the balance offset, phase and gain setting and input/output configuration.

Vision Control Associates was proud to provide the Beat the Crew Chief interactive game and videowall system for Schafer, Condon and Carter advertising’s client, SK Tools at SEMA in Las Vegas.   An impressive 3 x 4 video Wall was…

Vision Control was proud to provide support to Caterpillar at Mine Expo 2016.  Some notable elements were two huge 2.5mm videowalls, full production studios, high density Wi-Fi, video servers with displays and first of a kind transparent…

Technology 911 -  Vision Control Associates announces its new Technology 911 service-engineering department.  24/7/365 you can be connected and protected by our radically reliable technology support group.  …

Vision Control is proud to announce it appointment as a NewTek System Integration Partner.    VCA can provide a full Glass to Glass solutions for Schools, Governmental Agencies, Broadcasters and…

Vision Control is proud to provide the latest in Temperature sensing and Health Survey Systems with Facial Recognition and health compliance logging.   These NextGEN solutions are state of the art and built, programmed and…

Freeman Corporate Center teamed with Vision Control to integrate their new lobby infowall.  Vision Control supplied technical support to their in house electrical staff to install this new system.  VCA assisted in providing state of the…

Sparks Nevada - Vision Control Associates was happy to be selected to integrate Bourbon Square Casino's Audio technologies and projection video switching systems.

The frontpanel can be removed, and the smaller protruding section holding the buttons as well. When looking inside the latter, some hidden electronics for signalling and switching logic are revealed.

The Coherence II was about to receive an i-upgrade but somehow this never happened and the circuitry ended up in the Synergy 2i preamp. The Synergy 2i really is a great preamp with even better low level resolution than the Coherence II but is ultimately hampered in its abilities by its tiny power supply and of course it lacks a BPS.

TECHNOLOGY TO COMPEL--- Vision Control Associates is ready to provide state of the art solutions for both contracting installations and temporary audio visual systems.  From Holographic Displays to Large Screen LED we are ready to provide solutions that save money, energy, time and make life better.

Interactive, immersive and effective at the Heliexpo in Anahiem.  VCA provides 2 x 2 high bright LED/LED videowall, interactive screens and display screens to bring attendees up close to precision aerial transport.  Using dynamic video…

RedditCoherence2013

It's in our DNA.   Vision—the ability to provide innovative displays to compel, motivate and sell Control– Systems to provide the customer with technical interface that are both Intuitive and easy to operate control system software for meeting spaces, sports books, nightclubs, sport bars, boardrooms and entertainment venues. Associates– A group of professionals that you can depend on to provide thoughtful intelligent designs, radically reliable control systems, super 24/7 asset protection preventative maintenance programs and value engineered system solutions. Radically Reliable Results —In a decade that outsourcing of service, help desks and technical services ; we stand ready with Local Engineers and Technical Support Staff to provide solutions for your imaging and digital signage requirements. Let our humans work with your humans to make your technology work for you! 800-962-2978

Vision Control was proud to work with Defensewerx in the development of the technical systems in their Las Vegas Innovation Hub.  The Merge collaboration arena sports an integrated AV system with projection, touchscreens, NewTek Cameras and…

Vision Control Associates Rental Department has big displays for your big party during the BIG GAME.  Super parties require super displays and our team at VCA is ready to help.  From 1500 nit video wall displays for tent and high…

A good method to counteract this is problem is to make sure that its processor is awake, prior to switching to DC. What works for me is to change volume, then change the input back and forth and then switch to DC.

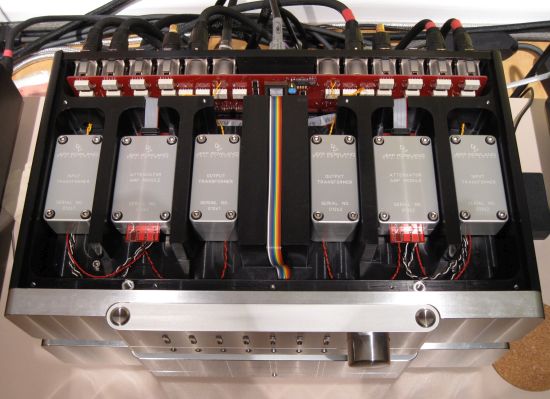

In the middle are 3 modules per channel side: input transformer, output transformer and attenuation circuitry. On the rear is the input circuitboard holding the XLR’s and relays to switch them. Note that the black part of the housing is made from one solid block of aluminium.

Vision Control Associates selected as a "TedX Reno" partner to provide the Audio, Video, Lighting and Wi-Fi for the 2014 event. The Theme of the event was "The Biggest Little Citizen", had over 20 speakers and was held at the Historic Lear…

Vision Control was proud to provide installation support to Clear Channel Airports digital media systems in Reno Tahoe Airport.  The systems included two 4mm LED video screens, baggage claim displays, info center system and Reno Visitors…

The remote controls for the above listed products have an internal capacitor that can cause the microprocessor to lock when the battery has been nearly drained. This problem will continue even after a fresh battery has been installed. This capacitor allows the remote to continue to function even after the battery has become very weak. The solution to this problem is simple: remove the new battery and allow the remote to stand overnight with no battery installed. Once the battery is reinstalled in the morning, the remote should function properly again.

Las Vegas Nevada – VCA provides Bakery show clients with imaging solutions.   Our customers attracted and informed customers using our video displays  and interactive technologies.

When I first bought my Coherence II in 2010 the first thing I did was to replace the batteries. Since then it has been running perfectly for almost 7 years. Lately I did find my sound becoming ever softer and woolier but laid the cause for this elsewhere. When the time came to sell the Coherence again (bacause I moved to a Criterion) even though the preamp worked perfectly I changed the batteries for good measure. When I gave the preamp a last listen to see if everything still worked I was in for a surprise! The sound was considerably more lively and upbeat. The bass was now more powerful and the midrange more open and communicative. This is how I heard it during my first comparisons against the Synergy 1 and 2i, and this way it still sounds very very good. Its biggest power is that it manages to combine the classic stress-free and smooth Roland sound with big bass and an overall powerful delivery. I am not entirely sure at which point the sound tilted into the overly relaxed but I think it was around the 5 year point. Because the process then goes very slowly this makes it difficult to notice. Lesson to take away from this: some batteries last longer than others which is why JRDG specify them for 5-7 years but I would advise to change the batteries at least every 5 years. They’re only 40 euros for the pair so cost is negligible and they’re easy to replace yourself.

Many Coherence II preamps exhibit some instability when switching from AC to DC mode. What can happen is that the preamp switches itself off when you manually switch it to DC. This may seem worrying, but it does not harm the preamp and does not influence the sound quality. The reason for its resetting itself is likely that its internal processor always automatically turns to sleep mode to allow for maximum sound quality, and needs to start up when a button is activated by the user. The theory is that the pulse is too short and is gone by the time that the processor has waken up, thereby tripping the circuit.

VCA Staff traveled to China for World Routes 2016 with the Las Vegas Convention and Visitors Authority.  Our team provided Multi-Screen Production Support for the marketing staff’s airline presentations.  We stand ready world wide…

Revered at its introduction for its legendary silence and amazing low level detail retrieval, the Coherence II is still highly regarded. And indeed in a direct comparison with the Synergy IIi, the Coherence sounds more muscular and is more full-bodied and tonally richer, with more lifelike dynamics.

We can help your team develop a eye grabbing, thought provoking presence  for your project maximizing  profit and effectiveness

2.6mm LED displays brings imaging close up at Conexpo show.   Vision Control provides Silicon Core 2.6mm display to Heavy Equipment manufacturer providing unsurpassed imaging of market ready animation.  The large as like videowall…

The Coherence II can be controlled remotely via the separate IR receiver unit pictured above that doubles as a volume display indicator. Why a separate box you ask? Well, it was believed by many audiophiles that remote control functionality compromised the purity of a preamplifier. By disconnecting it, any such fears can be laid to rest. Secondly, the separate box makes it possible to stow the preamp away from sight, in a cabinet even while still being able to control it.

Vision Control is proud to provide the Swatch Group and Hour Passion with videowall systems for the Las Vegas Stores.  The project included; 60" LCD Videowall Modules and Vision Control's Digital Signage Platform.   The system features…

Las Vegas Nevada -  Vision Control assists Las Vegas Convention and Visitors Authority with ROUTES show.  VCA provided large format video display and video servers for both booth and conference rooms.    The video wall…

Rock and Roll Wi-Fi at the Hard Rock Lake Tahoe – Vision Control has installed and commissioned the Hard Rock Lake Tahoe’s new Ruckus Wireless Solution.  From Casino Low Rise to In Room Wi-Fi, our Ruckus solution provides…

Housed in this part is the power supply (transformer and capacitors) as well as the batteries and their charge management electronics. The batteries fit snugly into tightly tolerated holes on the left and right. In fact, when they need replacement depending on circumstances and brand of batteries used, they can be swollen slightly and cannot be easily removed without using some tools (and a lot of care!).

It can happen that the Synergy locks up when you operate many buttons at the same time and also adjust the volume. All you need to do is unplug the powercord, wait for 10 seconds and reconnect. If you reconnect too quickly, the Synergy may not work. The same is true if you swap the power cable or change the position in the extensionblock. As a rule of thumb: always wait 10 seconds before reconnecting the power.

All feedback is welcome but I may not be able to respond to every comment. First-time comments need manual approval which may cause a slight delay. Avoid using links to prevent marking as spam.
