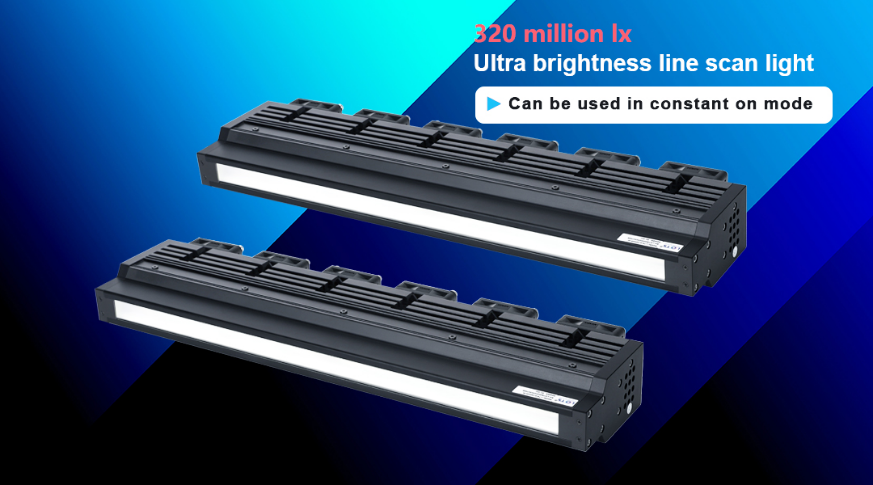

4LINH is the fourth generation of ultra-bright line light source newly developed by LOTS AUTOMATION. It adopts high-light LED and unique optical design. Compared with 3LINH series, 4LINh can increase illumination by 1.6 times, reduce weight by 35%, and reduce volume by 20%.

Features:

1. Unique optical design, luminance reach to 3,200,000LUX.

2. High uniformity and good parallelism.

3. Matched with high speed line scan camera.

Applications:

1.Steel plate inspection

2.Glass surface inspection

3.Metal surface inspection

4.Contour edges inspection

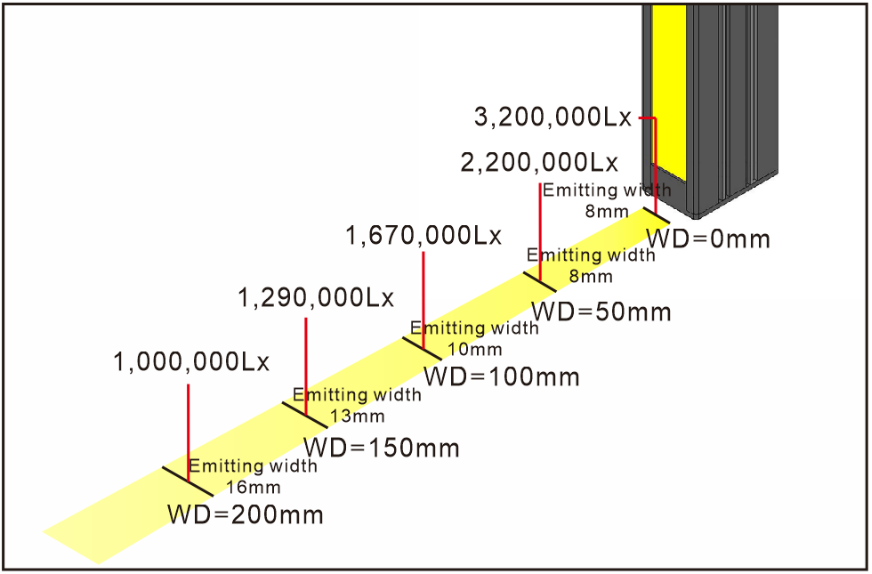

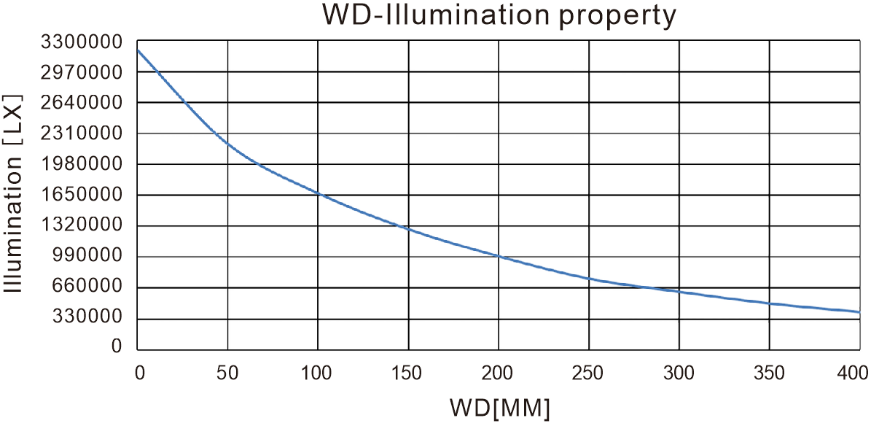

Illumination property diagram

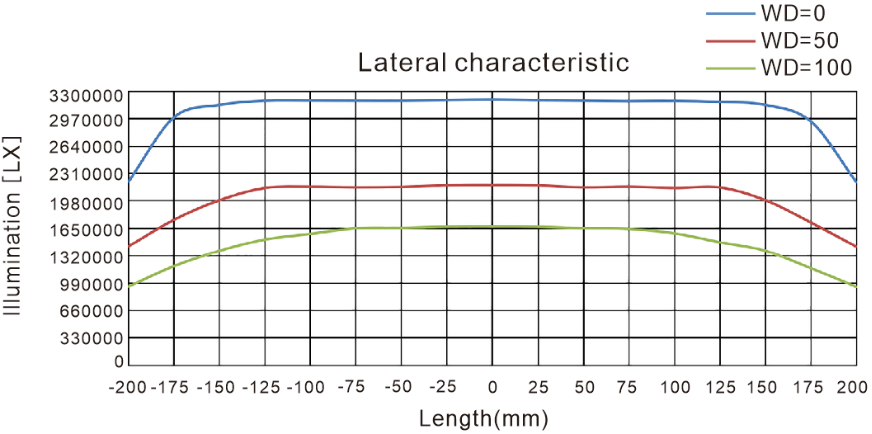

Lateral characteristic diagram

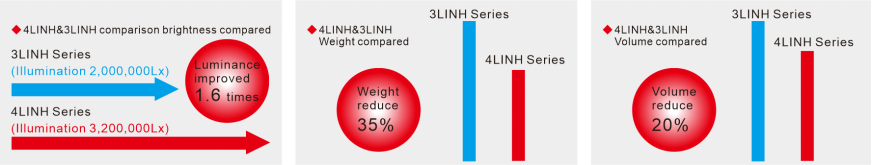

Effect comparison diagram

Diagrammatic drawing

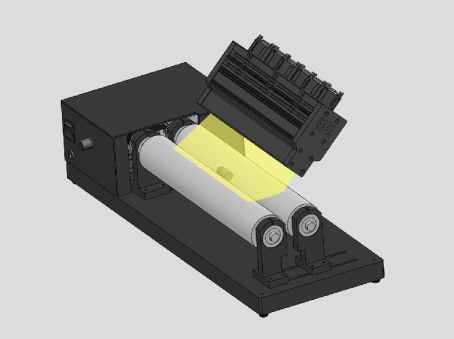

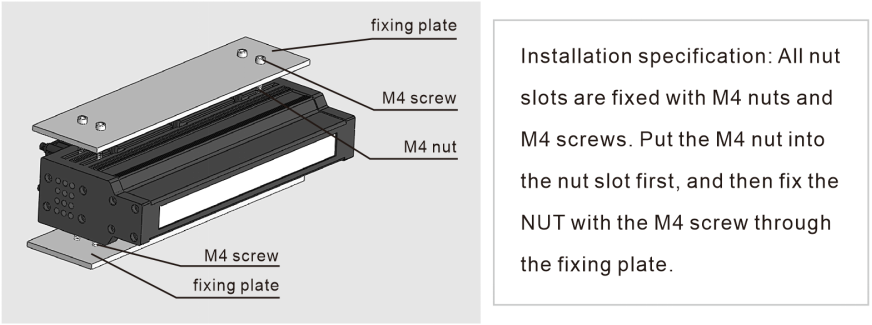

Installation method

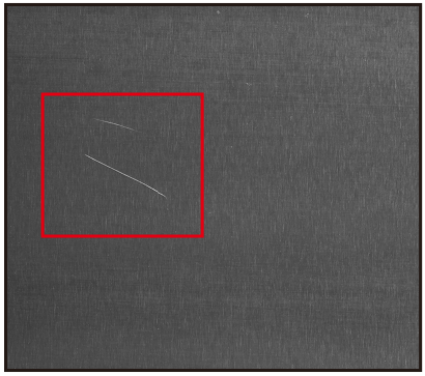

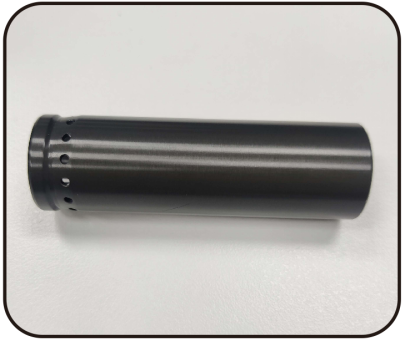

Imaging instance：cylinder surface inspection

Work piece	Inspection diagram

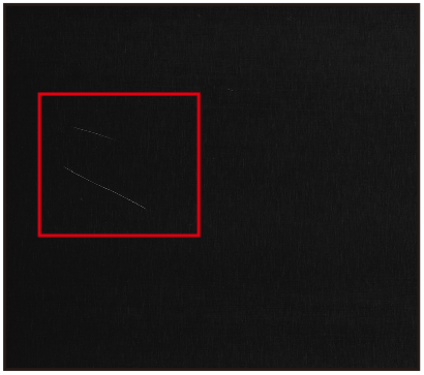

LTS-4LINH400-W effect picture	LTS-3LINH400-W effect picture

LTS-4LINH400-W effect picture                LTS-3LINH400-W effect picture

Compared with the line scan light of 4 generation and 3 generation, the lighting effect is better than that of 3 generation, and the inspection contrast is higher.

Coding rule

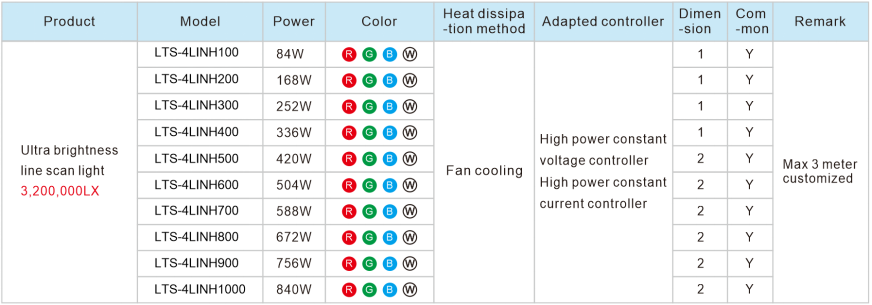

Light parameters

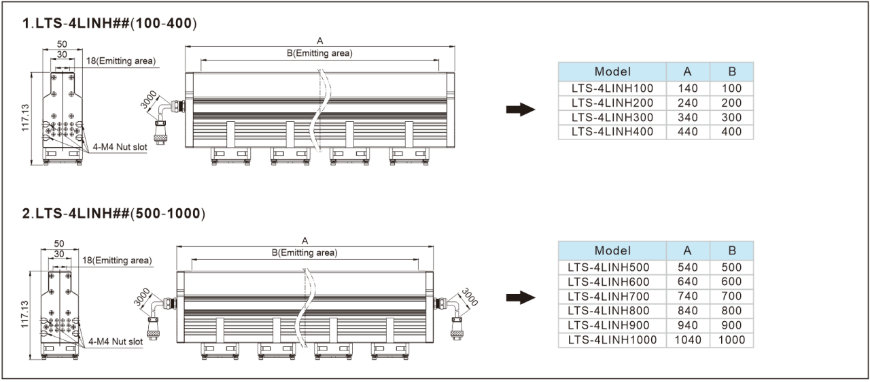

Boundary dimension(mm)
