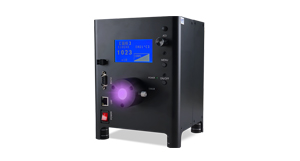

SWIR Fiber Optic Light(2SLG-SWIR)
SWIR Fiber Optic Light
The standard visible light wavelength range of LED light sources is approximately 380nm - 780nm, but the optical fingerprint information of some materials lies in the short-wave infrared range (SWIR, short-wave infrared) of 900nm - 2500nm. To explore the optical world beyond human vision, such as seeing the underlying drafts beneath oil paint, checking if a beverage bottle is full, inspecting semiconductors, or observing cities obscured by smog, specialized imaging illumination equipment is required. Our company has developed an infrared fiber light source paired with a short-wave infrared camera imaging solution.
-
Features:
-
1.Used for exterior and interior inspection.
2.9 wavelengths from 810nm to 1650nm are standard.
3.Best for replacing halogen light sources.
4.Due to the LEDs, it helps to long-term use and reduce the thermal damage to the irradiation.
-
Applications:
-
1.Semiconductor wafer and chip crack impurity detection
2.Food screening and sorting
3.Condition identification of fillers
4.Low light night vision to observe objects in the night
Brightness comparison chart

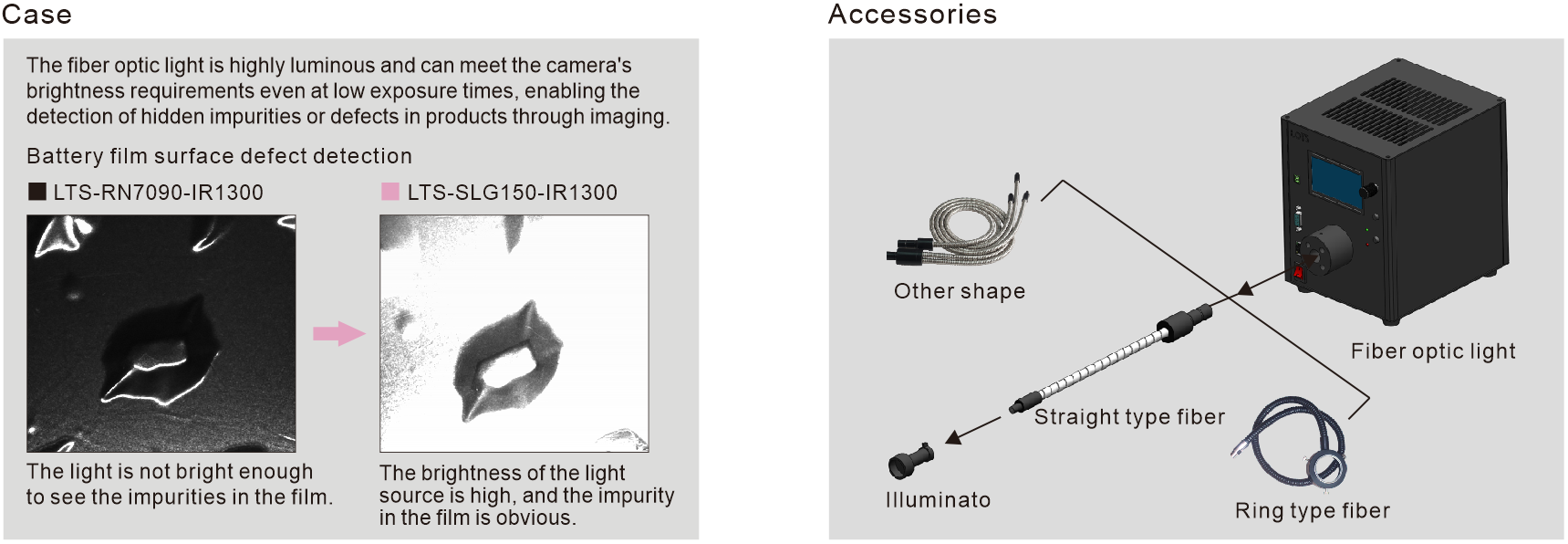

Case Accessories

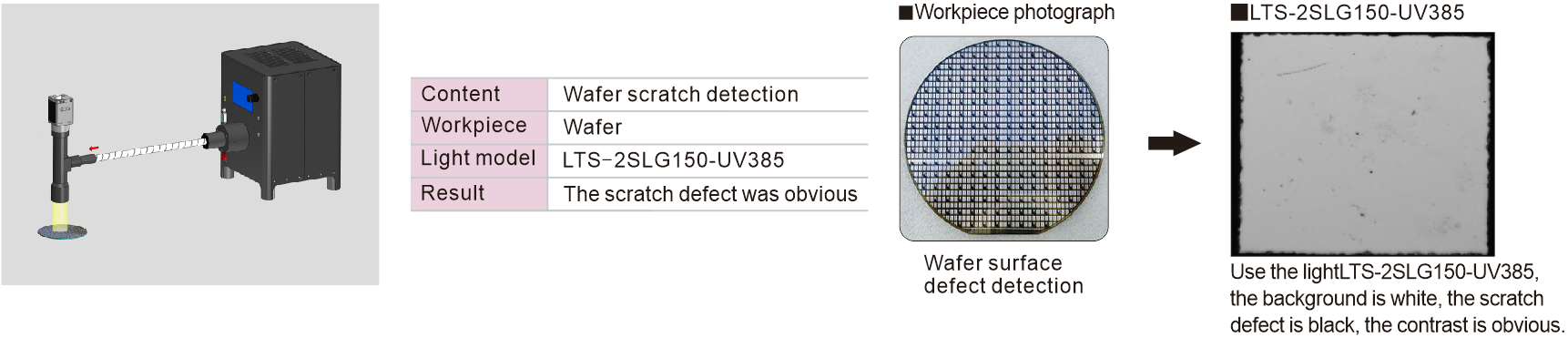

Micro-module wafer application diagram Option
Micro-module wafer application diagram

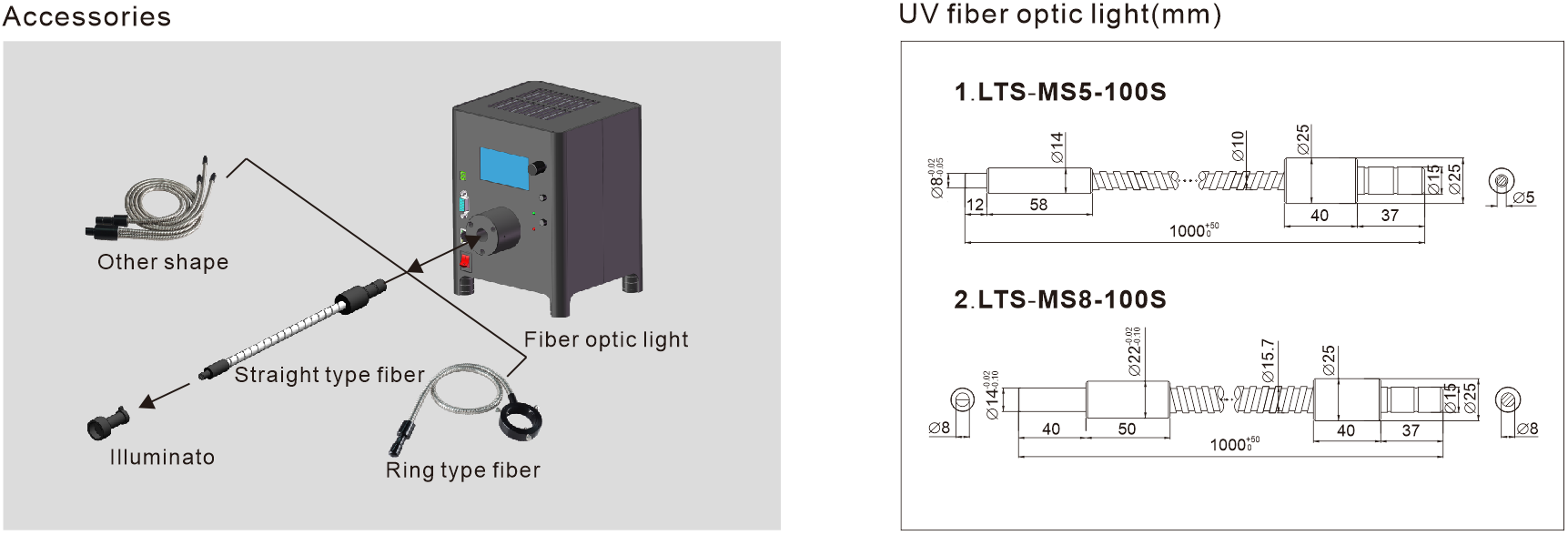

Fiber connector(mm)
Fiber optic size(mm)
Fiber optic size(mm)
.png)
Coding rule
Light Parameters
|
|
|
|
|
| LTS-2SLG150 | NIR | 810/850/940nm | L177xW155xH203(mm) | 5-24V |
| LTS-2SLG150 | SWIR | 1050/1127/1200/1300/1500/1650nm | L177xW155xH203(mm) | 5-24V |
| LTS-2SLG250 | SWIR | 1300nm | L177xW155xH203(mm) | 5-24V |
Parameters
|
|
|
|
| LED Wavelength | 810-940nm | 1050-1650nm | 1300nm |
| Number of channels | 1 ch | ||
| Compatible fiber diameter | Fiber OF diameter Φ6-14mm | ||
| Drive mode | Constant current | ||
| Luminance control level | 256/1024 Level | ||
| Luminance control method | Manual encoder knob adjustment, RS232/LAN communication optional | ||
| Communication method | RS232/LAN | ||
| Baud rate | 19200bps | ||
| External trigger voltage | 5-24V | ||
| Trigger response time | 30us | ||
| Input voltage | 100-240V AC | ||
| Protection functions | Over-load protection, over temperature protection, power off saving | ||
| Insulation and voltage resistance | AC1500V 1 minute cut off current 10mA, DC500V20MΩ or more | ||
| Operating environment | Temperature : 0 to 40ºC，humidity : 20 to 85%RH(Non-condensing) | ||
| Storage environment | Temperature : 0 to 50ºC，humidity : 20 to 85%RH(Non-condensing) | ||
| Life span | 30000 hours (until the light intensity reaches 50% of the time) | ||
*If you need drawings, please contact the sales staff.
