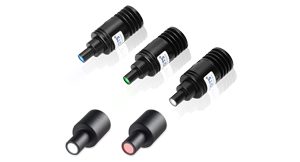

3 Generation Spot Light (3SL)
-
Features:
-
1.Mono spot light: high luminance, high uniformity,
can reach 400,000-1,000,000 Lx.
2.Four-color spot light: unique design of light path, one light has
R/G/B/W four colors, each color is controllable, no spot displacement.
-
Applications:
-
1.Mark position location.
2.ITO glass circuit inspection.
3.Oral liquid impurity inspection.
4.Liquid crystal glass base counterpoint.
Illumination property diagram Uniformity (Relative irradiance)
Model：LTS-3SL083/3SL084/3SL086-W
Imaging instance: grid spacing inspection of glass cover plate
Apply to a lens with a size of ∅12mm at the top of the installation for the light LTS-3SL083-RGBW(Four-color spot light).png)
Coding rule
|
|
|
|
|
|
| LTS-3SL083 | 700MA | 2.2W | R/G/B/W/IR850/940 | 400,000Lx | / |
| LTS-3SL123 | 700MA | 2.2W | R/G/B/W | 400,000Lx | Used with a 12mm aperture telecentric lens |
| LTS-3SL083-24V | 24V | 2.2W | R/G/B/W/IR | 400,000Lx | Used with 24v controller |
| LTS-3SL084 | 1000MA | 4W | R/G/B/W | 600,000Lx | / |
| LTS-3SL084(Four colors) | 350MA | 4W | RGBW | / | Four-color spot light |
| LTS-3SL086 | 1500MA | 6W | W | 850,000Lx | / |
| LTS-3SL22 | 700MA | 2.2W | UV410/395/385/365 | / | UV spot light |
| * UV & IR light can be customized as required. | |||||
