Flat dome light (LFM)
Product Details of Flat dome light (LFM) for Sale
-
Features:
1.High light transmittance and good uniformity.
2.Light weight, compact, easy to install.
3.The stripe gap can be customized.
-
Applications:
1.The concave & convex and crease defects on reflective glass, mirror, glass, mobile phone film or other reflective surface inspection..

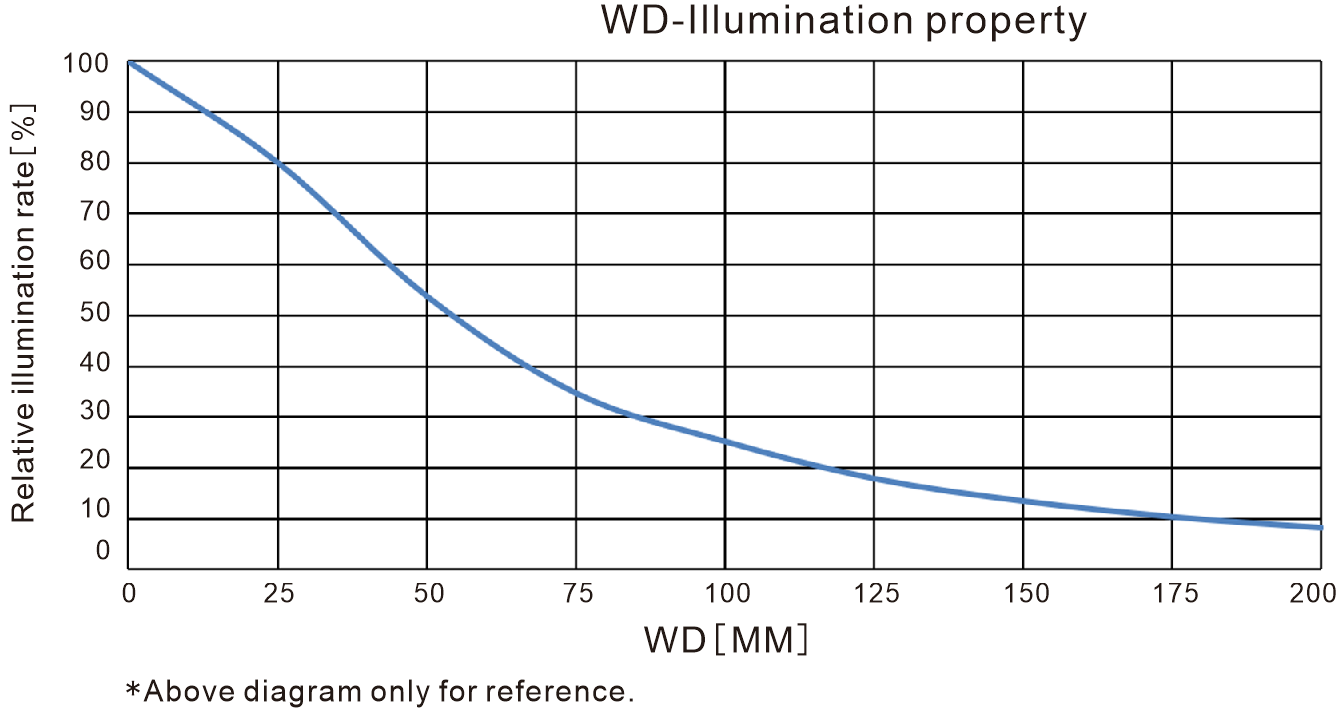

Illumination property diagram
Model：LTS-LFM100-W

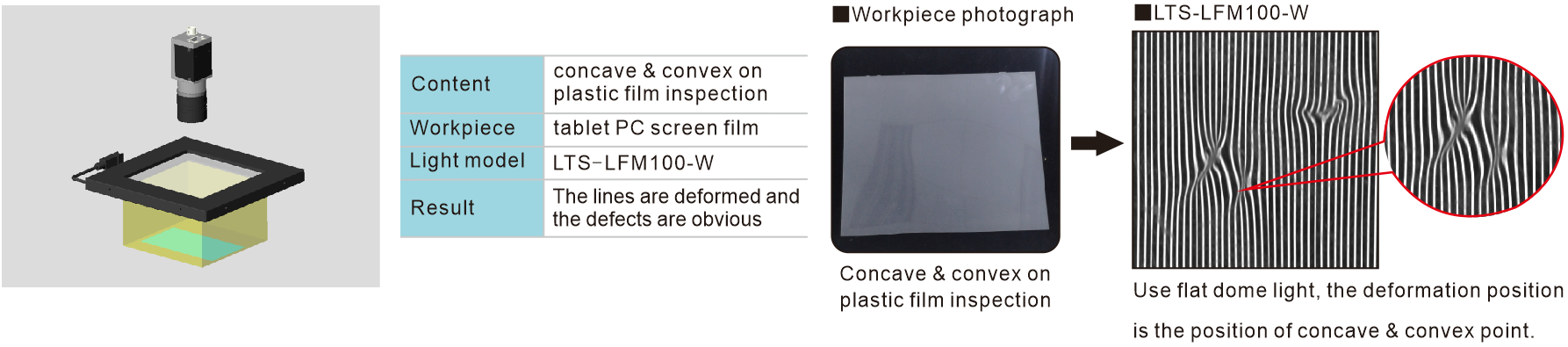

Imaging instance： Concave & convex on plastic film inspection

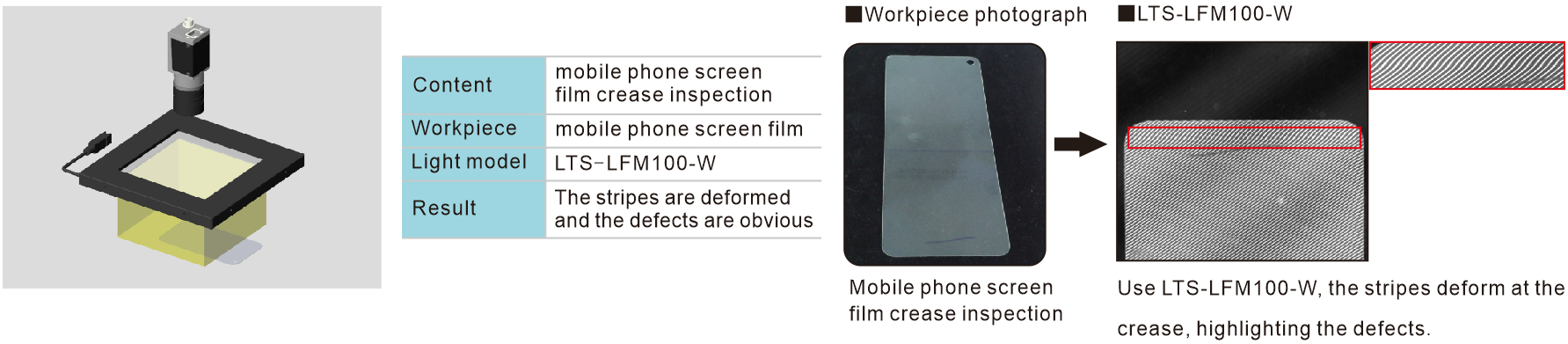

Imaging instance： Mobile phone screen film crease inspection

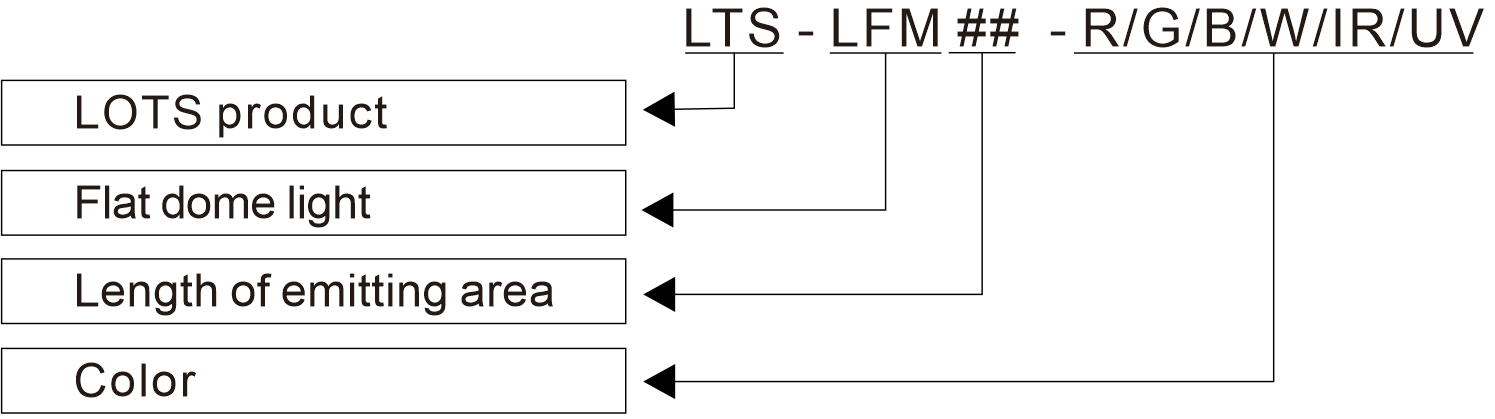

Coding rule
Model |
Color |
Dimension |
Voltage |
Power |
| LTS-LFM100-R/BGW |  /   .png) |
L145xW145xH10(mm) | 24V | 15.4W/23.1W |
| LTS-LFM150-R/BGW | / |
L195xW195xH10(mm) | 24V | 23.1W/34.6W |
| * UV & IR light can be customized as required. | ||||
