Constant Current Controller (3ACC)

1.Stable output current, good linearity. 2.RS232 serial communication. 3.LAN ethernet communication.

Product Details of Constant Current Controller (3ACC) for Sale

Product Introduction
Model Parameter
Product File

Features:

1.Stable output current, good linearity.
2.RS232 serial communication.
3.LAN ethernet communication.
4.Trigger pulse width adjustment.
5.Trigger delay time adjustment.
6.No flash at low exposure time.

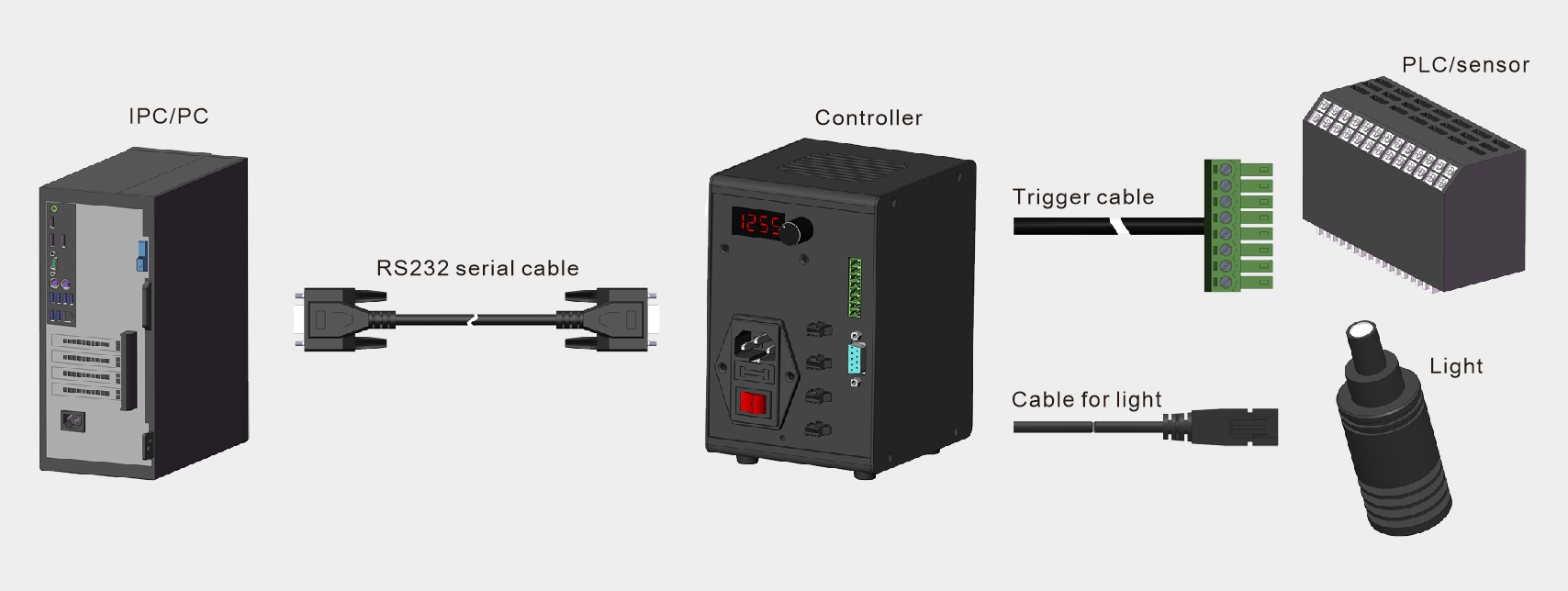

Working system

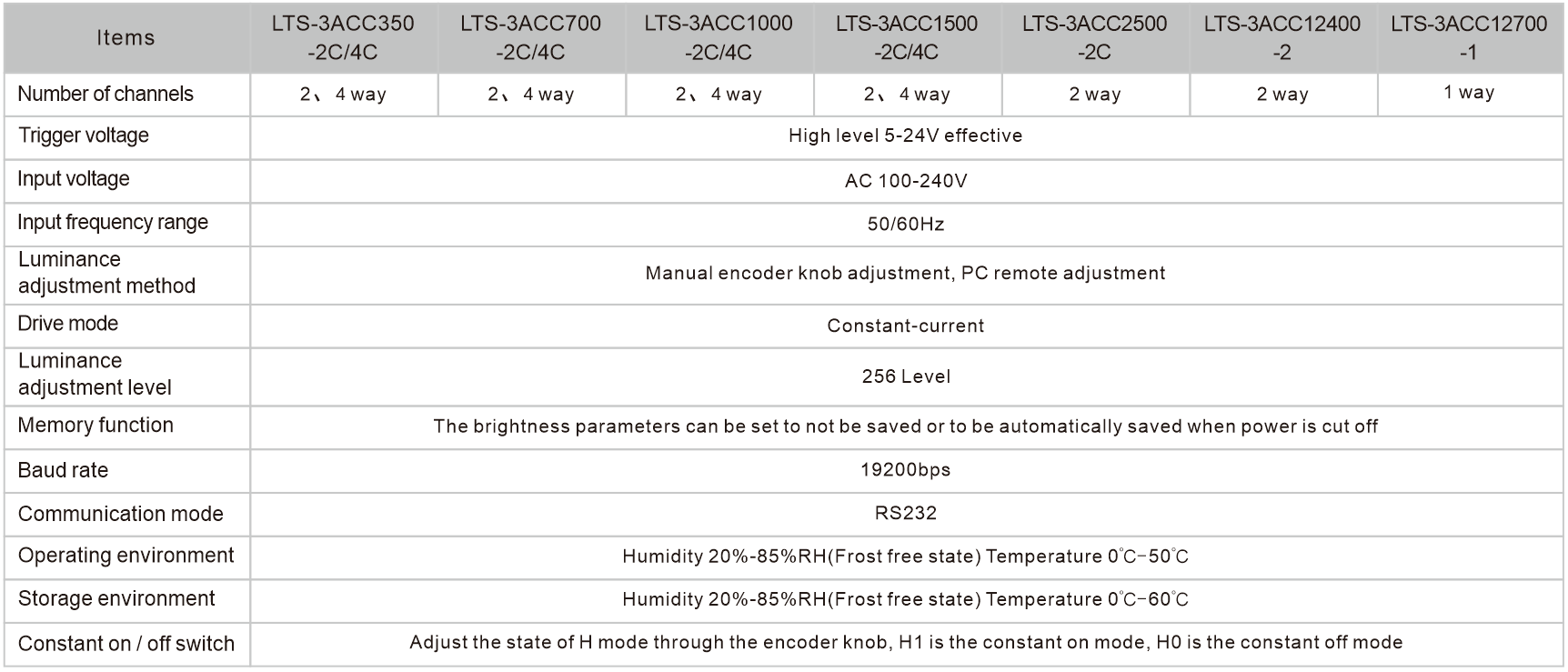

Parameters

Sequence chart

Constant on（H1 mode）:
When connect external trigger signal, trigger“+”input high level 5-24V, “-”ground connection, light off.
Constant off（H0 mode）:
When connect external trigger signal, trigger “+” input high level 5-24V, “-” ground connection, light on.

Specification: T1 is trigger delay time when turn off , T2 is trigger delay time when turn on, T3 is lighting off time after trigger, T1≤200us, T3≤200us.

External trigger wiring diagram

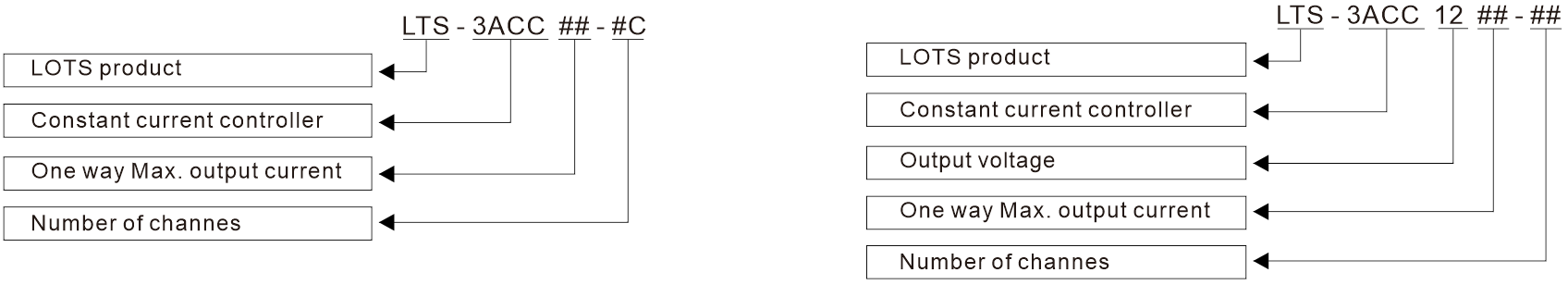

Coding rule

Product	Model	One way output current	Total output power	One way Max. output power	Number of channels	Extenal trigger voltage
Spot light controller	LTS-3ACC350-2	0-350mA	2W	1W	2	5-24V
	LTS-3ACC350-4	0-350mA	4W	1W	4
	LTS-3ACC700-2	0-700mA	4W	2W	2
	LTS-3ACC700-4	0-700mA	8W	2W	4
	LTS-3ACC1000-2	0-1000mA	6W	3W	2
	LTS-3ACC1000-4	0-1000mA	12W	3W	4
	LTS-3ACC1500-2	0-1500mA	10W	5W	2
	LTS-3ACC2500-1	0-2500mA	10W	10W	1
Structure light controller	LTS-3ACC12400-2	0-400mA	10W	5W	2
Structure light controller	LTS-3ACC12700-1	0-700mA	8.5W	8.5W	1
