Narrow Angle Coaxial Light
Product Details of Narrow Angle Coaxial Light for Sale
-
Features:
-
1.High uniformity, high luminance.
2.Light ray is approximate parallel.
3.Apply to mirror surface.
-
Applications:
-
1.The defect inspection of reflective surface.
2.Mark position location.
3.The crack or scratch inspection of metal surface.
4.Edge measure contour inspection

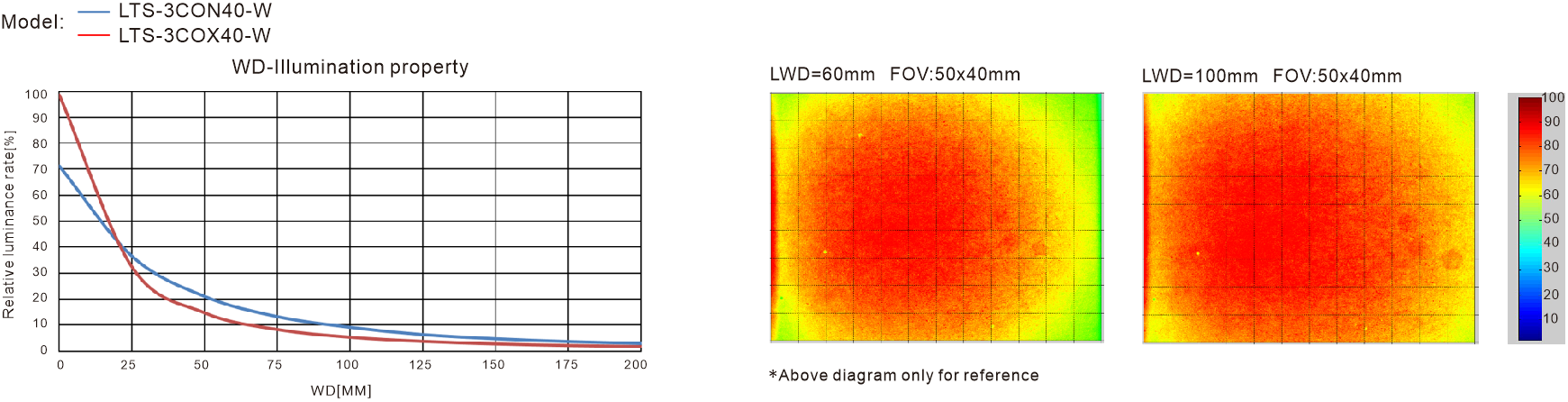

Illumination property diagram
Uniformity (Relative irradiance)
Model：LTS-3CON40-W/3COX40-W
Wire jacket Narrow angle light
Effect contrast photograph
Narrow Angle Coaxial Light:LTS-3CON40-W Coaxial Light :LTS-3COX40-W
Imaging instance: character inspection
Coding rule
|
|
|
|
|
| LTS-3CON30-R/BGW |  /   .png) |
L96xW40xH40(mm) | 24V | 9.6W/14.4W |
| LTS-3CON40-R/BGW | / |
L111xW50xH50(mm) | 24V | 14.4W/14.4W |
| LTS-3CON50-R/BGW | / |
L121xW60xH60(mm) | 24V | 24.0W/24.0W |
| LTS-3CON60-R/BGW | / |
L131xW70xH70(mm) | 24V | 28.8W/36.0W |
| LTS-3CON80-R/BGW | / |
L151xW92xH90(mm) | 24V | 50.4W/72.0W |
| LTS-3CON100-R/BGW | / |
L181xW112xH110(mm) | 24V | 86.4W/108W |
| * UV & IR light can be customized as required. | ||||
*If you need drawings, please contact the sales staff.
