Coaxial Light

1.The damage inspection of the chip, wafer. 2.The scratch of reflective surface. 3.Bar code, QR code recognition.
Product Details of Coaxial Light for Sale

Features:

1.Luminance up 50%.
2.Compact, high cost-effective.
3.Compact, high cost-effective.
4.Cover wire jacket, anti-pulls.
5.Can add dust-proof mirror, dust-proof.

Applications:

1.The damage inspection of the chip, wafer.
2.The scratch of reflective surface.
3.Bar code, QR code recognition.
4.Printing, silk-screen inspection

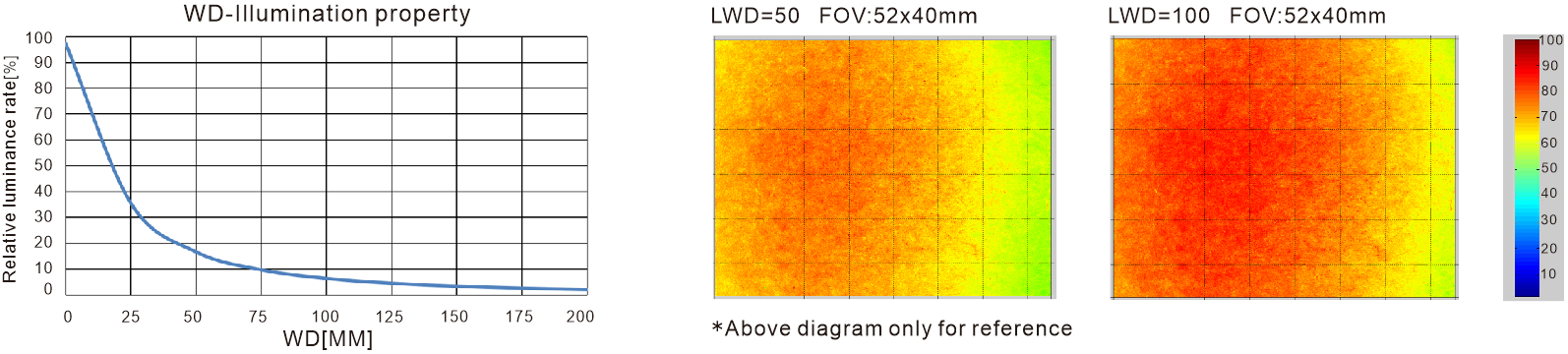

Illumination property diagram

    Uniformity (Relative irradiance)

Model:LTS-3COX50-W

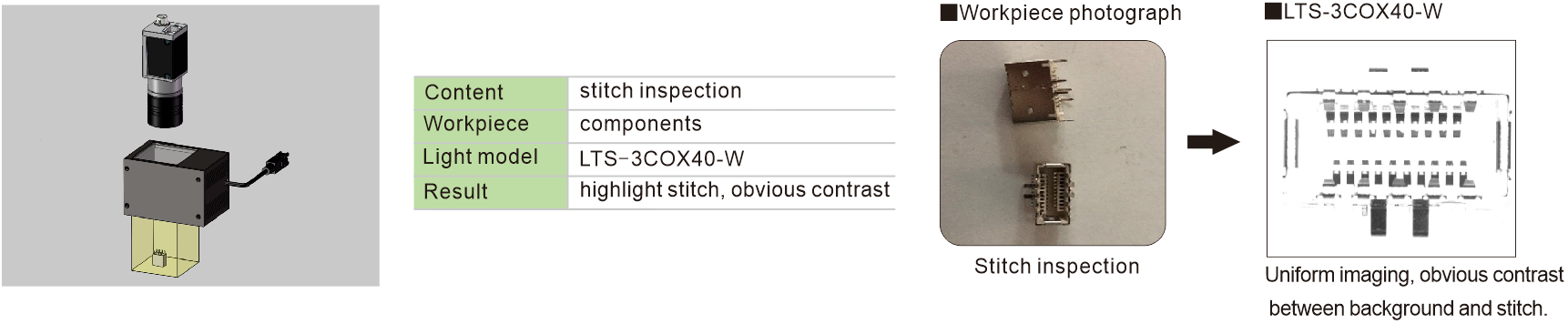

Imaging instance: stitch inspection

Coding rule



 Model

Color

Dimension

Voltage

Power

   LTS-3COX20-R/BGW /    L50xW30xH30(mm) 24V  1.5W/1.5W
   LTS-3COX30-R/BGW /    L64xW40xH40(mm) 24V  2.9W/4.4W
   LTS-3COX40-R/BGW /    L74xW50xH50(mm) 24V  4.4W/4.4W
   LTS-3COX50-R/BGW /    L84xW60xH60(mm) 24V  6.5W/7.2W
   LTS-3COX60-R/BGW /    L94xW72xH70(mm) 24V 8.7W/10.8W
   LTS-3COX80-R/BGW /    L114W92xH90(mm) 24V  15.2W/21.6W
   LTS-3COX100-R/BGW /    L134xW112xH110(mm) 24V  24.5W/32.4W
   LTS-3COX120-R/BGW /    L154xW132xH130(mm) 24V  34.6W/45.4W
* UV & IR light can be customized as required.
