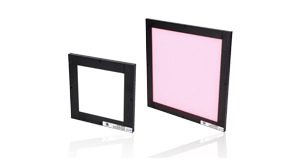

Ultrathin Flank Back Light
Product Details of Ultrathin Flank Back Light for Sale
-
Features:
-
1.Ultrathin thickness to 9.5MM.
2.Easy to install in the narrow space.
3.High uniformity.
4.Customized size for reference.
-
Applications:
-
1.Glass surface scratch inspection.
2.PCB printing defect inspection.
3.Reflective surface defect inspection.

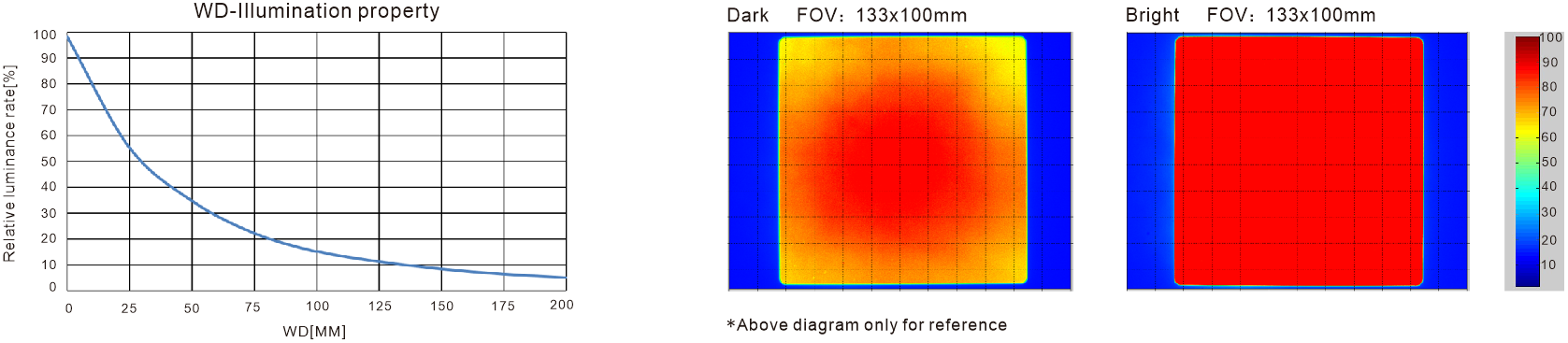

Illumination property diagram Uniformity (Relative irradiance)
Model：LTS-2FTC100100-W

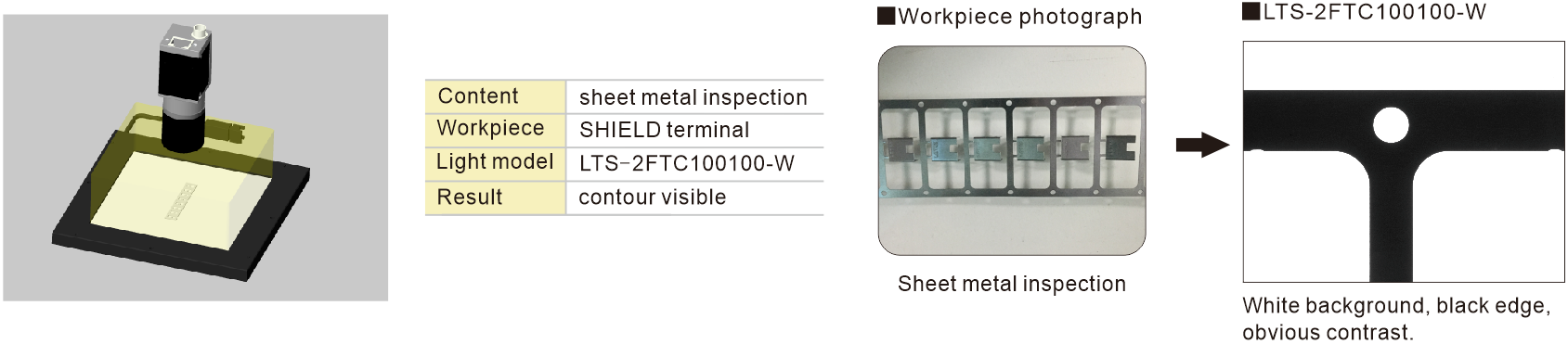

Imaging instance：sheet metal inspection

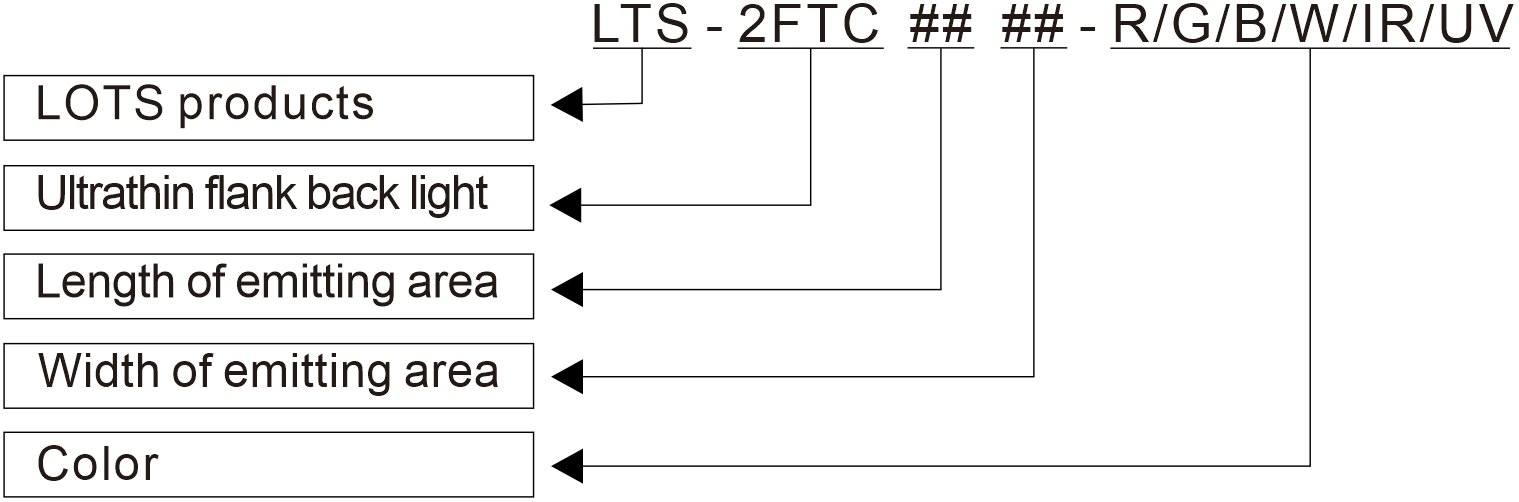

Coding rule
|
|
|
|
|
| LTS-2FTC3030-R/BGW |  /   .png) |
L70xW70xH9.5(mm) | 24V | 3.9W/3.9W |
| LTS-2FTC5050-R/BGW | / |
L90xW90xH9.5(mm) | 24V | 3.9W/7.7W |
| LTS-2FTC6060-R/BGW | / |
L100xW100xH9.5(mm) | 24V | 3.9W/7.7W |
| LTS-2FTC100100-R/BGW | / |
L140xW140xH9.5(mm) | 24V | 7.7W/11.6W |
| LTS-2FTC150150-R/BGW | / |
L190xW190xH9.5(mm) | 24V | 11.6W/15.4W |
| LTS-2FTC200200-R/BGW | / |
L240xW240xH9.5(mm) | 24V | 15.4W/19.2W |
| LTS-2FTC250250-R/BGW | / |
L290xW290xH9.5(mm) | 24V | 19.2W/23.1W |
| LTS-2FTC300300-R/BGW | / |
L340xW340xH9.5(mm) | 24V | 23.1W/26.9W |
| LTS-2FTC360360-R/BGW | / |
L400xW400xH9.5(mm) | 24V | 23.1W/30.8W |
| LTS-2FTC450450-R/BGW | / |
L490xW490xH9.5(mm) | 24V | 30.8W/38.4W |
| * UV & IR light can be customized as required. | ||||
