2APC Analog Controller
Features:
1.Small size.
2.Output voltage stepless adjustment.
3.Output voltage display function.
4.External trigger function.
5.Have a 12V 500mA output interface.
Working system

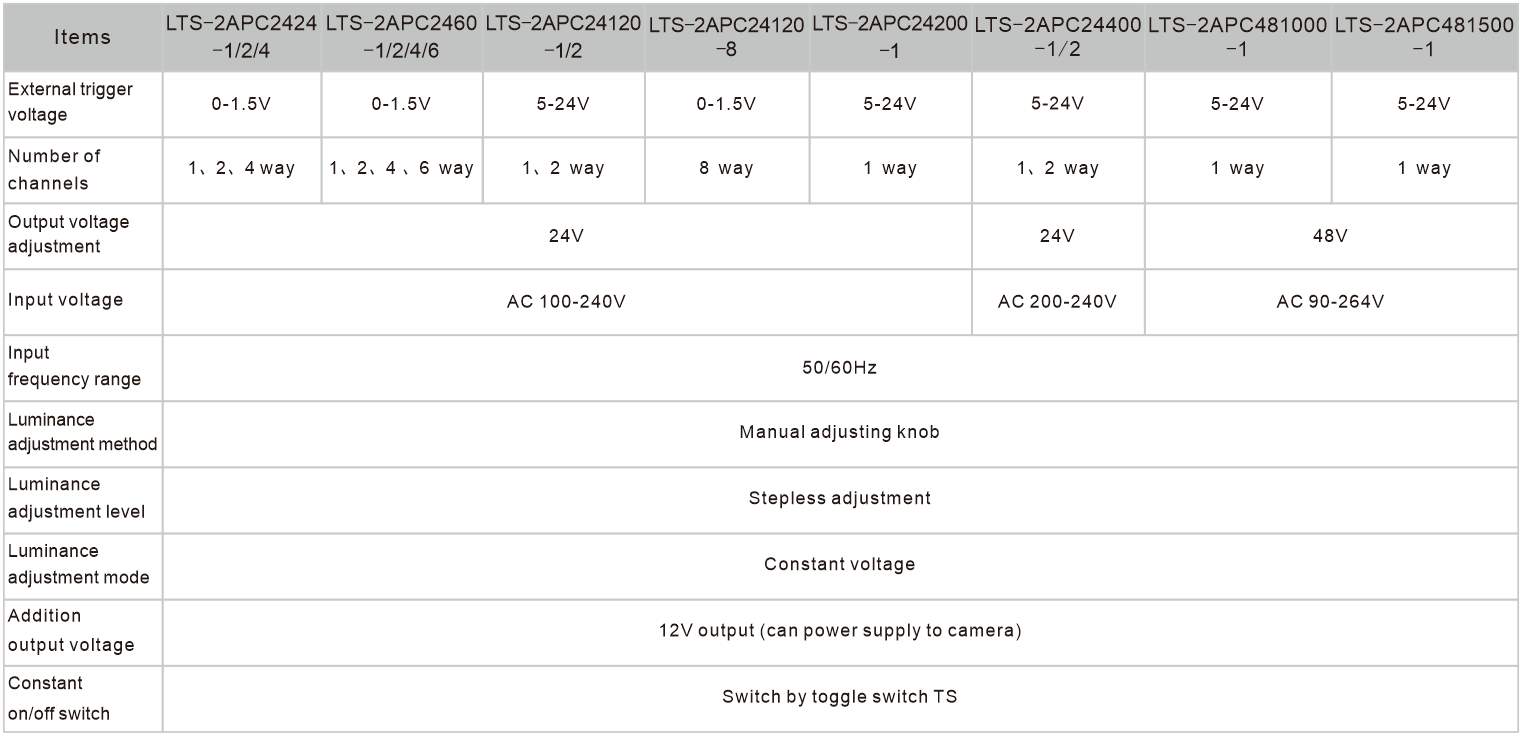

Parameters
Sequence chart
Initial state is off mode:
Specification: T1 and T3 are trigger delay time, T1≤80us, T3≤80us.
Initial state is off mode:
Specification: T1 is trigger delay time when turn on , T2 is the lighting time after trigger, T3 is trigger delay time when turn off, T1≤5us, T3≤5us.
Trigger wire connection method
Trigger wire connection method of low-level trigger controller
Trigger wire connection method of high-level trigger controller
Coding rule
| Product | Model | Output voltage | Total output power | One way Max.output power | Number of channels | External trigger voltage |
|---|---|---|---|---|---|---|
| Analog controller | LTS-2APC2424-1 | 24V | 24W | 24W | 1 | 0-1.5V |
| LTS-2APC2424-2 | 24V | 24W | 24W | 2 | ||
| LTS-2APC2424-4 | 24V | 24W | 24W | 4 | ||
| LTS-2APC2460-1 | 24V | 60W | 60W | 1 | ||
| LTS-2APC2460-2 | 24V | 60W | 30W | 2 | ||
| LTS-2APC2460-4 | 24V | 60W | 24W | 4 | ||
| LTS-2APC2460-6 | 24V | 60W | 24W | 6 | ||
| LTS-2APC24120-1 | 24V | 120W | 120W | 1 | 5-24V | |
| LTS-2APC24120-2 | 24V | 120W | 60W | 2 | ||
| LTS-2APC24120-8 | 24V | 120W | 24W | 8 | 0-1.5V | |
| LTS-2APC24200-1 | 24V | 180W | 180W | 1 | 5-24V | |
| LTS-2APC24400-1 | 24V | 360W | 360W | 1 | ||
| LTS-2APC24400-2 | 24V | 360W | 180W | 2 | ||
| LTS-2APC481000-1S | 24V | 1000W | 1000W | 1 | ||
| LTS-2APC481500-1S | 24V | 1500W | 1500W | 1 |
