3DPC Controller Box
Product Details of 3DPC Controller Box for Sale
Features:
1.High cost-effective.
2.Constant on and strobe mode optional.
3.0-255ms strobe lighting time can be set.
4.10us short delay time, 256-level luminance adjustable.
Working system

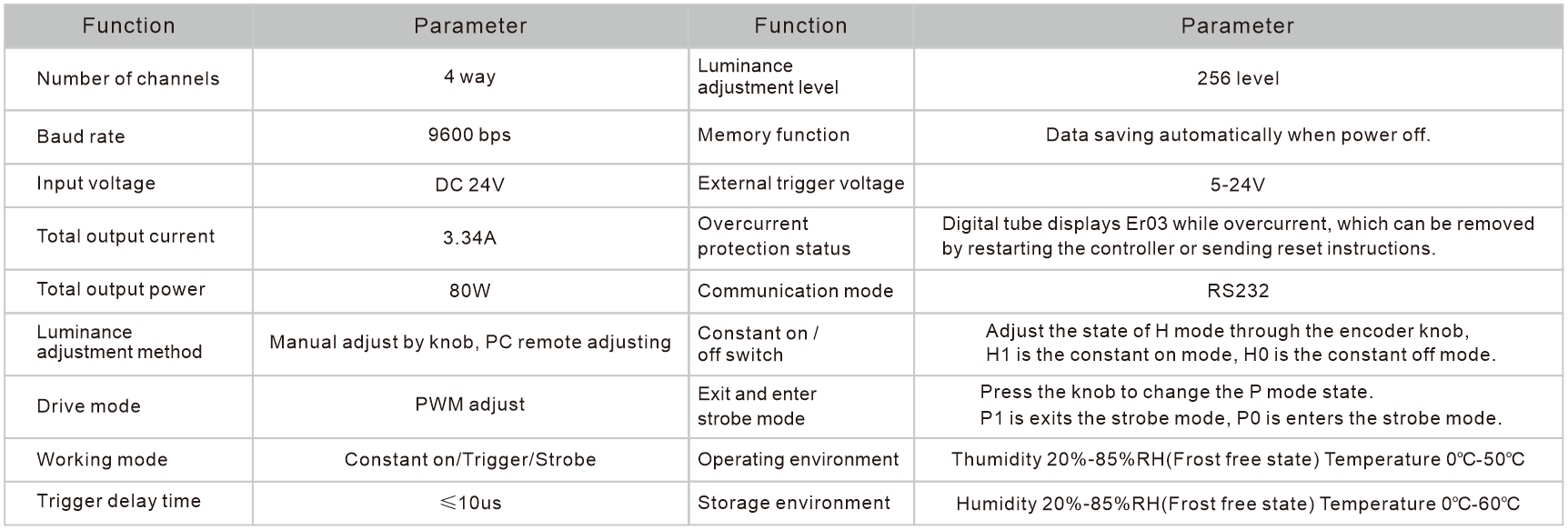

Parameters
Sequence chart
Constant on mode（H1 mode）:
When connect external trigger signal, trigger “+” input high level 5-24V, “-” ground connection, light off.
Constant off mode（H0 mode）:
When connect external trigger signal, trigger “+” input high level 5-24V, “-” ground connection, light on.
Constant off mode（H0 mode）trigger sequence chart:
Specification: T1 is trigger delay time when turn on , T2 is the lighting time after trigger, T3 is trigger delay time when turn off, T1≤10us, T3≤10us.
External trigger wiring diagram
Constant on mode（H1 mode）:
When connect external trigger signal, trigger “+” input high level 5-24V, “-” ground connection, light off.
Constant off mode（H0 mode）:
When connect external trigger signal, trigger “+” input high level 5-24V, “-” ground connection, light on.
Constant off mode（H0 mode）trigger sequence chart:
Specification: T1 is trigger delay time when turn on , T2 is the lighting time after trigger, T3 is trigger delay time when turn off, T1≤10us, T3≤10us.
External trigger wiring diagram
Coding rule
| Product | Model | Output voltage | Total output power | One way Max.output power | Number of channels | External trigger voltage |
|---|---|---|---|---|---|---|
| Digital control box | LTS-3DPC2480-4F | 24V | 80W | 80W | 4 | 5-24V |
