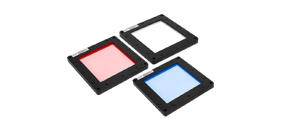

Flat Dome Light

1.Reflective bag character detection.   2.Metal can production date detection.   3.concave and convex surface pattern detection.
Product Details of Flat Dome Light for Sale

Features:

1.Suitable for a wide range of applications from high to low WD.
2.No dot pattern or Moire ripple.
3.5 times brighter than LFX.
4.High light transmittance, good uniformity.

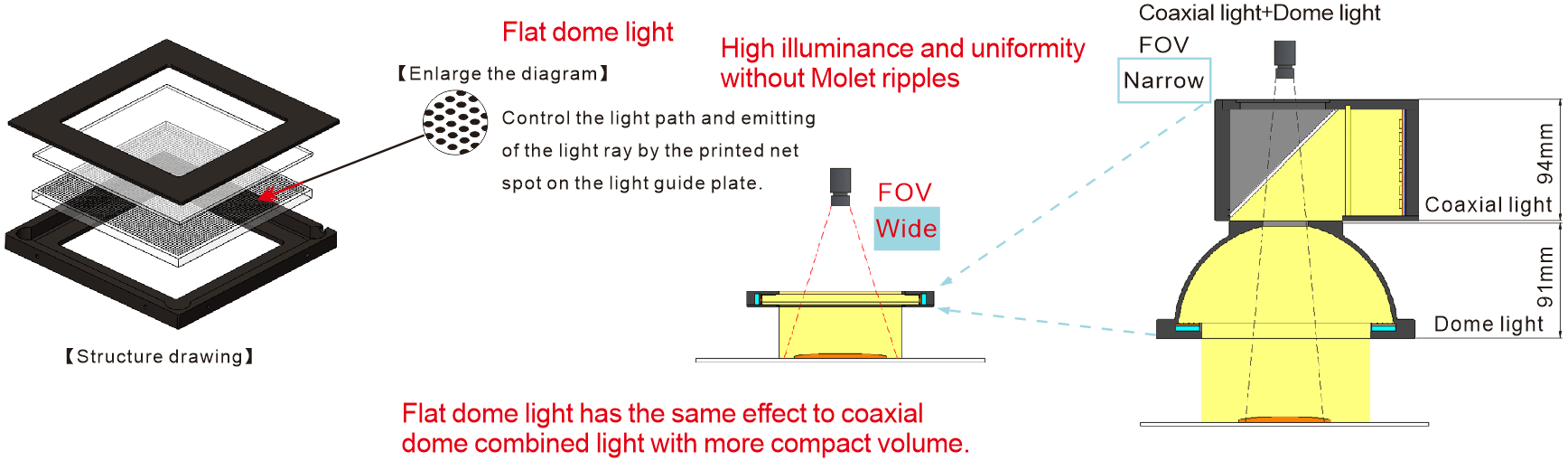

5.With coaxial and dome shadowless light effect.

Applications:

1.Reflective bag character detection.

2.Metal can production date detection

3.concave and convex surface pattern detection

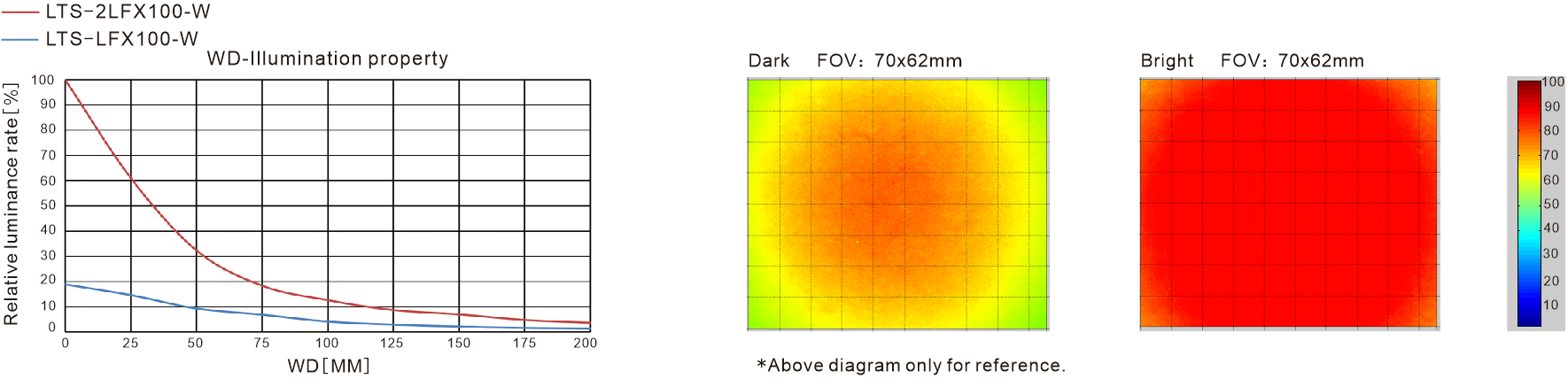

Illumination property diagram                                                                    Uniformity (Relative irradiance)


Light contrast diagram

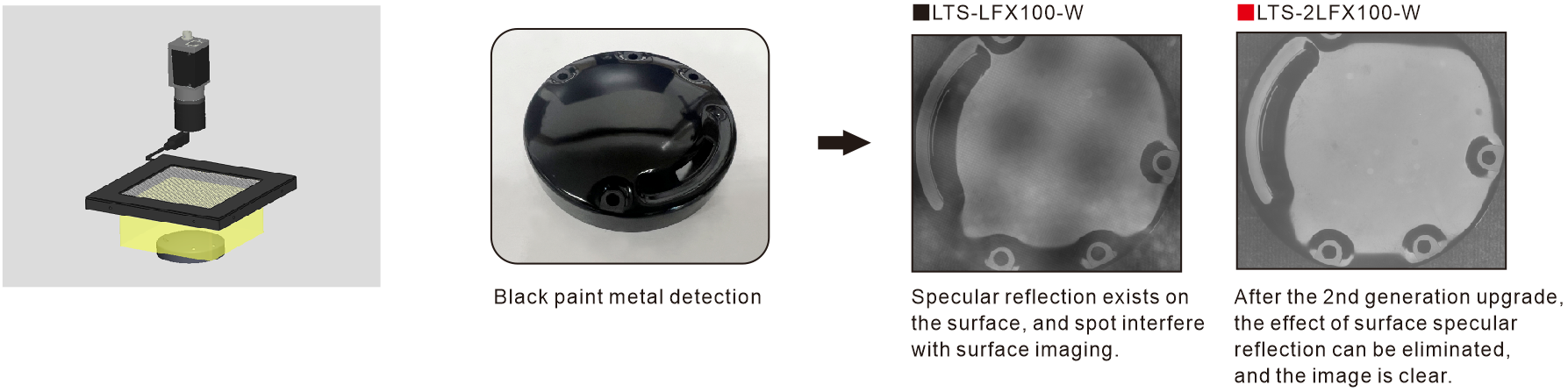

Imaging instance: Black paint metal detection

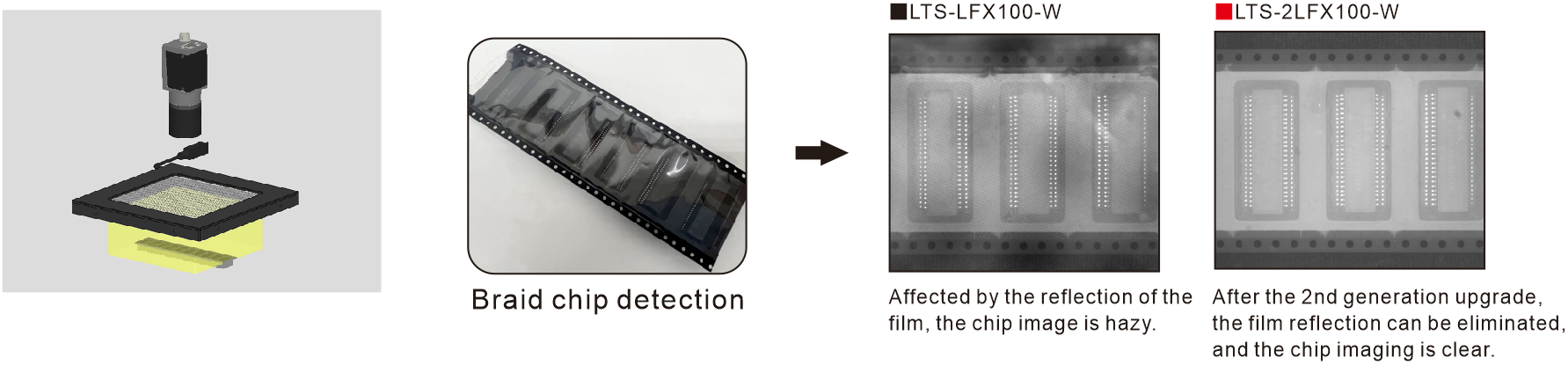

Imaging instance: Braid chip detection

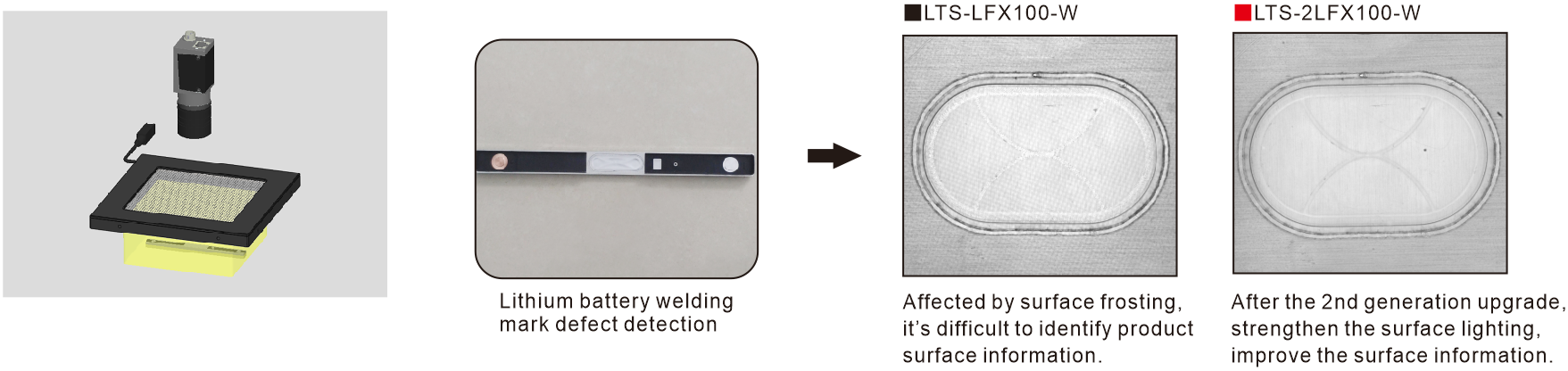

Imaging instance: lithium battery welding mark defect detection

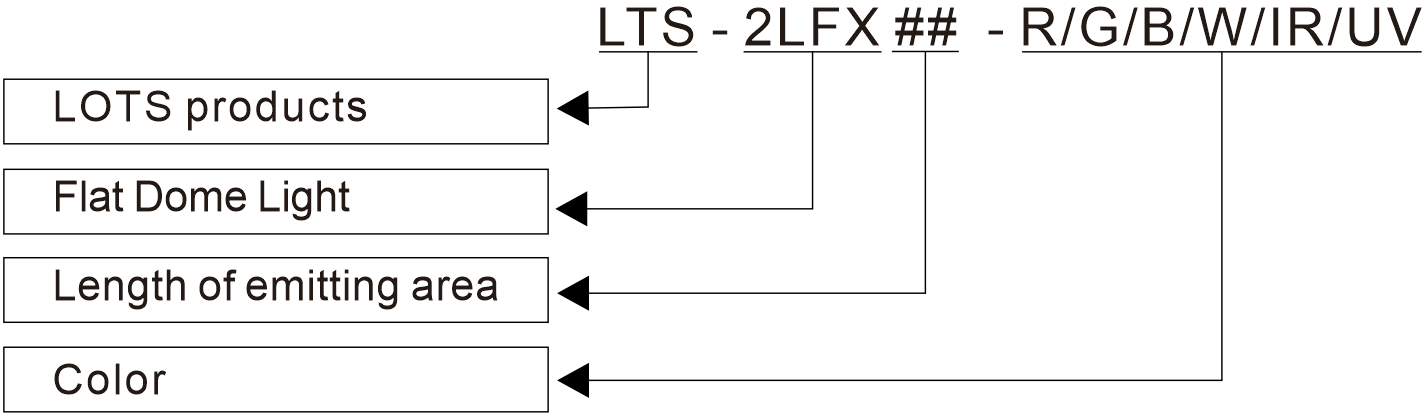

Coding rule






 Model

Color

Dimension

Voltage

Power

   LTS-2LFX50-R/BGW /    L90xW90xH11.5(mm) 24V   5.4W/10.8W
   LTS-2LFX75-R/BGW /    L115xW115xH11.5(mm) 24V  10.8W/10.8W
   LTS-2LFX100-R/BGW /    L140xW140xH11.5(mm) 24V  10.8W/16.2W
   LTS-2LFX150-R/BGW /    L190xW190xH11.5(mm) 24V  21.6W/26.9W
   LTS-2LFX200-R/BGW /    L240xW240xH11.5(mm) 24V  26.9W/32.3W
   LTS-2LFX90-LA-R/BGW /    L130xW130xH11.5(mm) 24V  10.8W/16.2W
   LTS-2LFX140-LA-R/BGW /    L180xW180xH11.5(mm) 24V  16.2W/31.6W
   LTS-2LFX210-LA-R/BGW /    L258xW258xH11.5(mm) 24V  26.9W/37.7W
* UV & IR light can be customized as required.
