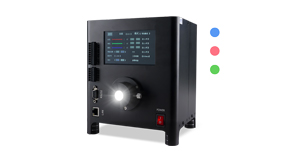

RGB fiber optic light

1.A single unit can achieve RGB tricolor illumination, separate or mixed color lighting options. 2.Saves space and supports three optical imaging functions. 3.Touch screen LCD display status and setting.
Send Inquiry
Product Details of RGB fiber optic light for Sale
  • Product Introduction
  • Model Parameter
  • Product File

Features:

1.A single unit can achieve RGB tricolor illumination, separate or mixed color lighting options.
2.Saves space and supports three optical imaging functions.
3.Touch screen LCD display status and setting.
4.With continuous on /IO trigger function, the brightness is adjustable.
5.External trigger mode/internal trigger mode.
6.RS232/LAN communication.
7.With over current /over temperature/power off protection.





Sequence chart



Fiber connector(mm)




Fiber optic size(mm)



Fiber optic size(mm)

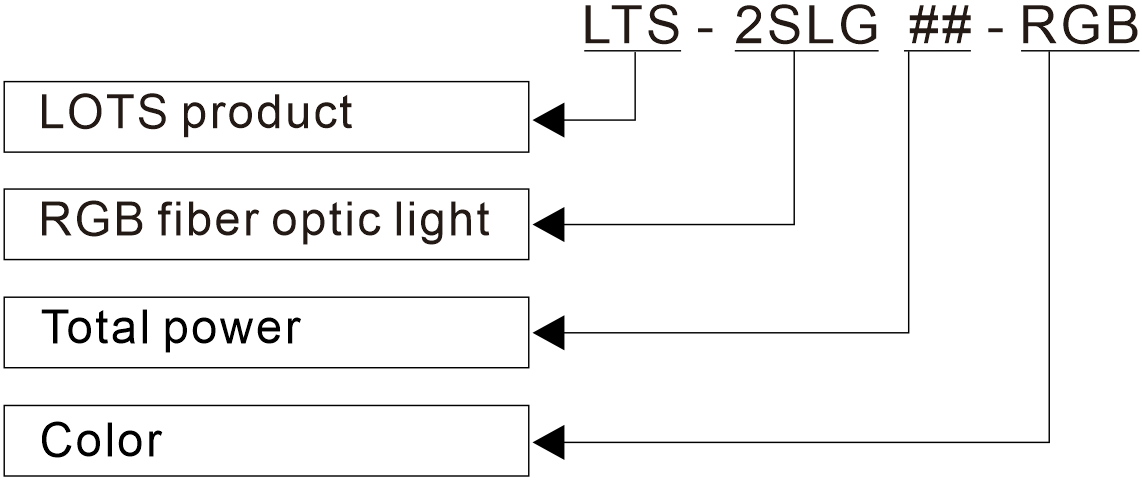

Coding rule




Light Parameters

 Model

Output power

Color

Dimension

External trigger voltage
   LTS-SLG60 60W RGB    L203xW172xH175.9(mm)  5-24V
   LTS-SLG250 250W RGB    L223xW190xH191.4(mm)  5-24V


Parameters

Model

LTS-SLG60-RGB

LTS-SLG250-RGB
   Communication method RS232/LAN communication
   Baud rate 19200bps
   Operating mode Continuous on mode/trigger mode/ continuous off mode
   Trigger mode   Follow trigger/Internal trigger mode/External trigger Mode 1 / External trigger Mode 2 Optional
   Trigger response time  20us
   Compatible fiber diameter  Fiber OF diameter Φ6-14mm
   Drive mode Constant current
   Luminance control level  256/1024 level option
   Luminance control method Touch LCD display/RS232 communication/LAN communication adjustment Optional
   Language option The display can be switched between Chinese and Englis
   External trigger voltage 5-24V
   Warning function Overcurrent alarm, overtemperature alarm
   Input voltage 100-240VAC
   Memory protection feature Over-load protection, over temperature protection, power off saving
   Insulation and voltage resistance AC1500V 1 minute cut off current 10mA, DC500V20MΩ or more
   Operating environment Temperature : 0 to 40ºC，humidity : 20 to 85%RH(Non-condensing)
   Storage environment Temperature : 0 to 50ºC，humidity : 20 to 85%RH(Non-condensing)
   Life span 60,000 hours (until the light intensity is down to 50%)

*If you need drawings, please contact the sales staff.
