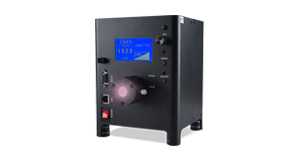

SWIR Fiber Optic Light(2SLG-SWIR)
SWIR Fiber Optic Light
The standard visible light wavelength range of LED light sources is approximately 380nm - 780nm, but the optical fingerprint information of some materials lies in the short-wave infrared range (SWIR, short-wave infrared) of 900nm - 2500nm. To explore the optical world beyond human vision, such as seeing the underlying drafts beneath oil paint, checking if a beverage bottle is full, inspecting semiconductors, or observing cities obscured by smog, specialized imaging illumination equipment is required. Our company has developed an infrared fiber light source paired with a short-wave infrared camera imaging solution.
-
Features:
-
1.Used for exterior and interior inspection.
2.9 wavelengths from 810nm to 1650nm are standard.
3.Best for replacing halogen light sources.
4.Due to the LEDs, it helps to long-term use and reduce the thermal damage to the irradiation.
-

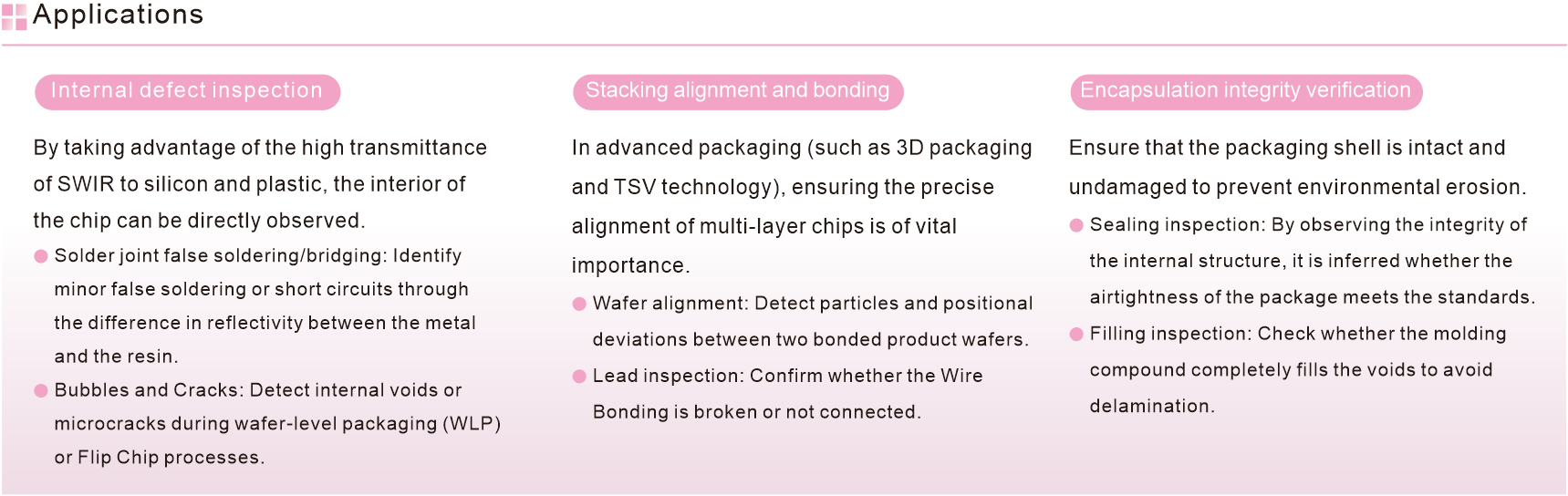

Applications:
-
1.Semiconductor wafer and chip crack impurity detection
2.Food screening and sorting
3.Condition identification of fillers
4.Low light night vision to observe objects in the night
Micro-module wafer application diagram Option
Case Accessories
Micro-module wafer application diagram

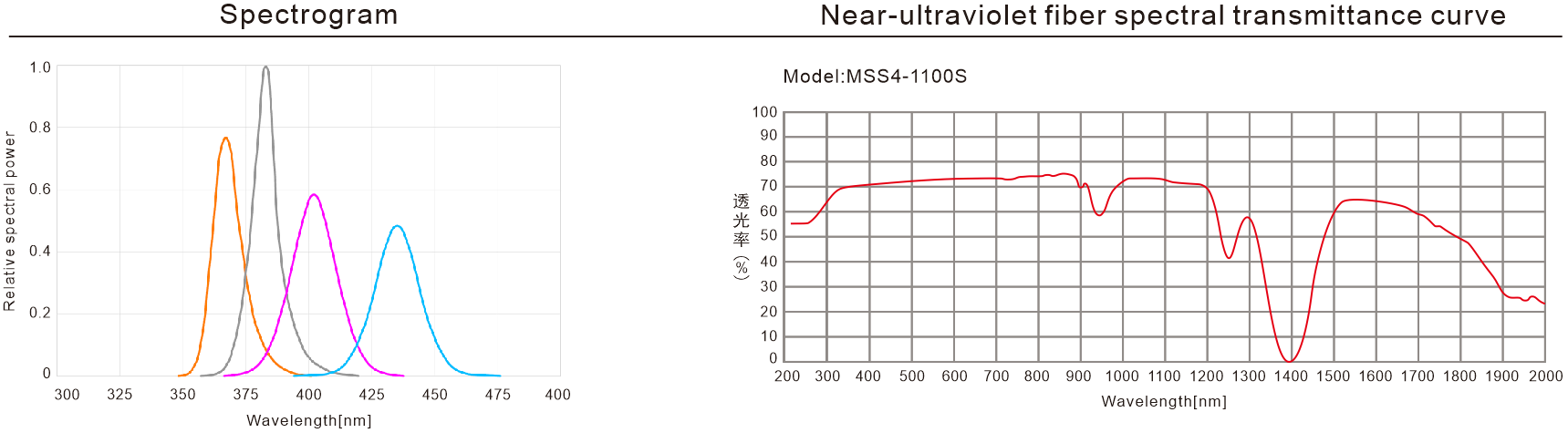

Brightness comparison chart
Fiber connector(mm)
Fiber optic size(mm)
Fiber optic size(mm)
.png)
Coding rule
Light Parameters
|
|
|
|
|
| LTS-2SLG150 | NIR | 810/850/940nm | L177xW155xH203(mm) | 5-24V |
| LTS-2SLG150 | SWIR | 1050/1125/1200/1300/1500/1650nm | L177xW155xH203(mm) | 5-24V |
| LTS-2SLG250 | SWIR | 1300nm | L177xW155xH203(mm) | 5-24V |
Parameters
|
|
|
|
| LED Wavelength | 810-940nm | 1050-1650nm | 1300nm |
| Number of channels | 1 ch | ||
| Compatible fiber diameter | Fiber OF diameter Φ6-14mm | ||
| Drive mode | Constant current | ||
| Luminance control level | 256/1024 Level | ||
| Luminance control method | Manual encoder knob adjustment, RS232/LAN communication optional | ||
| Communication method | RS232/LAN | ||
| Baud rate | 19200bps | ||
| External trigger voltage | 5-24V | ||
| Trigger response time | 20us | ||
| Input voltage | 100-240V AC | ||
| Protection functions | Over-load protection, over temperature protection, power off saving | ||
| Insulation and voltage resistance | AC1500V 1 minute cut off current 10mA, DC500V20MΩ or more | ||
| Operating environment | Temperature : 0 to 40ºC，humidity : 20 to 85%RH(Non-condensing) | ||
| Storage environment | Temperature : 0 to 50ºC，humidity : 20 to 85%RH(Non-condensing) | ||
| Life span | 30000 hours (until the light intensity reaches 50% of the time) | ||
*If you need drawings, please contact the sales staff.
